Product details

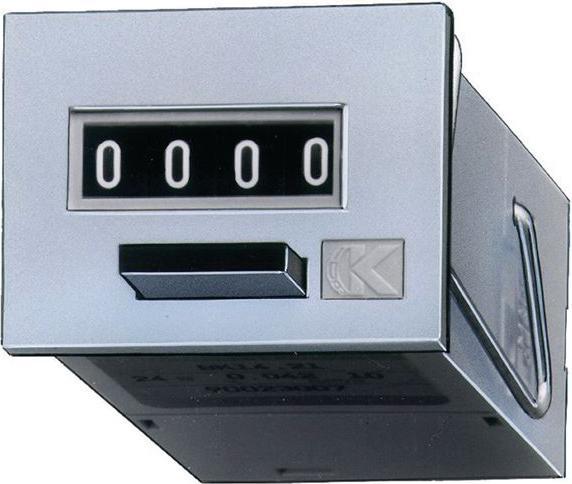

Designation=pulse counter, electromechanical, type=1.180.210.066, operating voltage, max.=230 VAC, operating voltage, min.=-999, operating temperature, max.=55 °C, operating temperature, min.=-10 °C, Width=37 mm, Width installation opening=33.3 mm, Height=28 mm, Height installation opening=25 mm, Depth=74.5 mm, Character height=4 mm, Counting frequency max.=18 Hz, Connection type=Tinned round pins, Ø 1.6 mm, Number of digits=4 digits, Display=Analogue9, Input type=Voltage, Functions=Pulse counter, Backlight=No, Mounting type=Panel mounting, Reset method=Manual, Protection class=IP40, Counting capacity min.=0, Conformity with standards=-999, Series=Bk 14 Series.
Energy meter type | Energy meter |
mounting style | Built-in |
Nominal voltage | 230 V |
Item number | 44126521 |
Manufacturer | Kübler |
Category | Energy monitors |
Manufacturer no. | 1.180.210.066 |
Release date | 25.3.2024 |
Colour | Black |
Energy meter type | Energy meter |
mounting style | Built-in |
Nominal voltage | 230 V |
Display type | Analogue |
Protection type (IP code) | IP40 |
CO₂-Emission | |
Climate contribution |
Height | 28 mm |
Length | 74.50 mm |
Width | 37 mm |
