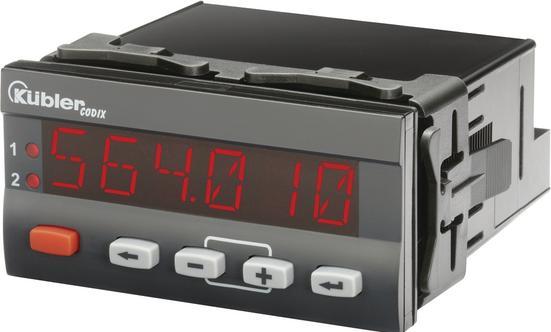

Kübler Codix 566 Controller Strain Gauge 10-30V

Measurement function: Current
Display type: LED
Cutout height: 45 mm
Cutout width: 92 mm
Depth: 90.5 mm
Min. temperature: -20 °C
Max. temperature: +60 °C
Series: CODIX 566

Process controller Codix 566. The Codix 566 process controller with summation function displays measured values from all common strain gauges in high resolution. Additionally, it can monitor and control two limit values. The controller is user-friendly and features a practical quick-start overview for setting parameters and operating the device. 6-digit display, 14-segment LED, 14 mm high. Simple programming via four buttons on the front. One front button and two additional inputs can be programmed for specific applications. Sampling rate of ten measurement values per second. Application-specific characteristic curves over twelve measurement points. Manual summation function - can be reset separately. Two relay outputs (changeover contacts) for limit value monitoring with hysteresis. On/off delay function for measured current or summation values. Digital filter (first order) to smooth display deviations in unstable input signals. Wide range of supply voltages: 10 to 30 V dc as well as 90 to 260 V ac.
