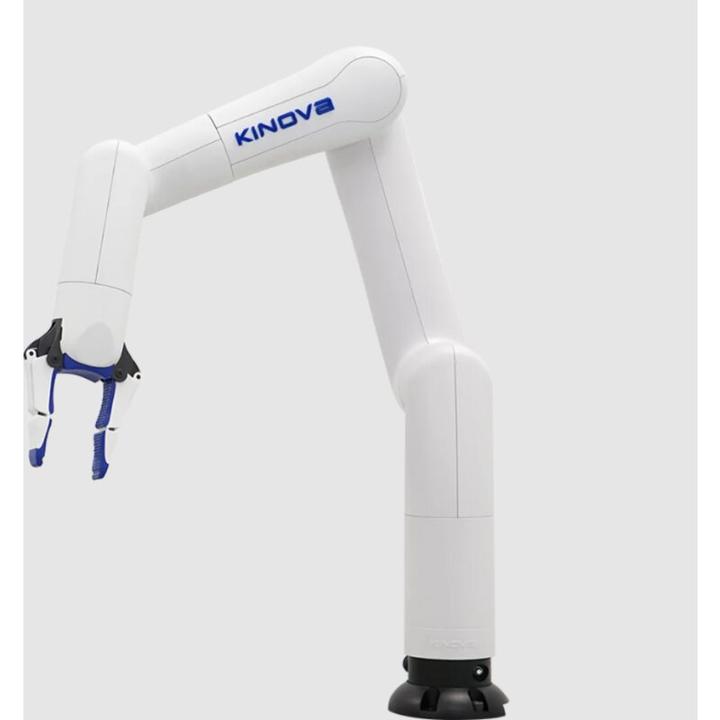

Kinova Gen3 lite

A more compact and accessible option

As the latest and most compact member of the ultra-light Kinova robot series, the Gen3 lite offers a more cost-effective option for those seeking one or more professional robotic arms for light manipulation tasks. The Gen3 lite is ideal for professional use in academic training. Additionally, the Gen3 lite operates with the powerful and robust Kinova Kortex API software, allowing seamless collaboration with other Gen3 lite or Gen3 units and the exchange of programming. - Ultra-lightweight - Highly portable - Energy-efficient

Education package

The first part of the Kinova Gen3 lite education package is now available! This curriculum, developed in collaboration with academics, includes five topics and provides guides, code templates, and answer sheets. Robotics professors can take advantage of this opportunity to enhance their students' hands-on experience without the extra effort of customizing their materials by using the provided content:

• Introduction to Gen3 lite
• Forward and inverse kinematics
• Trajectory planning
• Modeling

Technical specifications:

• Number of degrees of freedom: 6 DOF
• Payload (medium range, continuous): 0.5 kg / 1.1 lbs
• Total weight: 5.4 kg / 11.9 lbs
• Maximum reach: 760 mm
• Maximum speed: 25 cm/s
• Joint range of the actuator: ± 155 to 160°
• Supply voltage: 21 to 30 VDC, 24 VDC nominal
• Average power: 20 W
• Protection class: IP22
• Operating temperature: 0 °C to 40 °C / 32 °F to 104 °F

Included in the package:

• 1x Kinova Gen 3 Lite
• 1x PSU with the correct plug type
• 1x Quick-connect
• 1x Base mounting kit.
