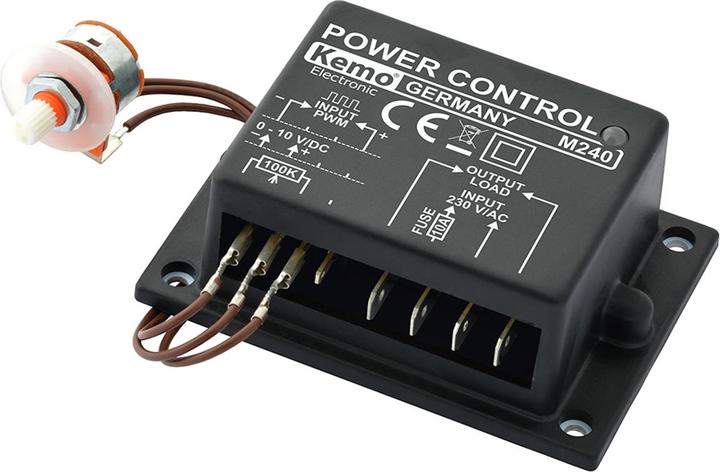

Kemo Power regulator

The Kemo M240 is a power controller for 230 V/AC consumers such as motors, lamps, and many dimmable LEDs. The controller is overload-proof and can be regulated via a potentiometer, a control voltage, or PWM signals.

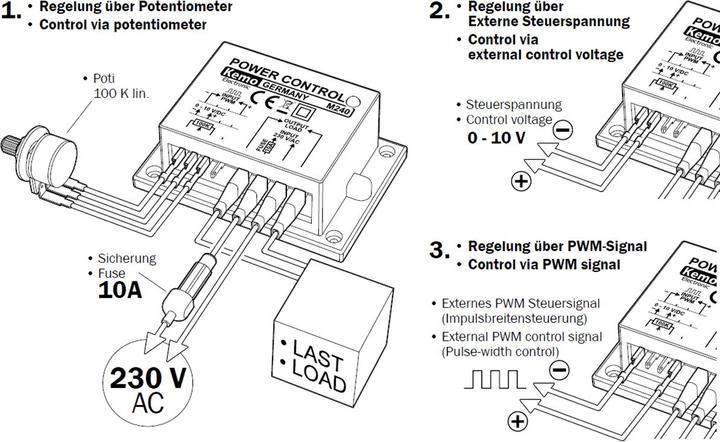

Regulation options:

• Potentiometer 100 K linear
• Control voltage 0-10 V/DC
• PWM signal 3 – 24 V, 100-10,000 Hz

Technical specifications:

• Operating voltage: 220-230 V/AC, 50-60 Hz
• Max. connectable load: 10 A (2,300 W)
• Regulation type: Phase cut
• Switch-on: Soft start
• Operating indicator, overload indication: 2-color LED
• Control signal input is completely isolated from the load control circuit
• Connections: Plug contacts flat connectors 6.3 mm and 2.8 mm
• Dimensions: approx. 87 x 60 x 33 mm

Installation instructions:
The module should be installed in a way that allows for good ventilation (it may heat up depending on the load) and that it is isolated (no possibility of contact with fingers or other body parts, as there are open connections carrying mains voltage). The module should be installed close to the device that is to be controlled (max. 2 m). The aluminum base plate of the module should not exceed 60 °C. If the module is loaded below 800 W, no additional heat sink is required. For loads between 800 W and 2300 W, the module should be screwed to a cooling substrate with the aluminum base plate. The module has 8 flat connectors for connection: 4 x 2.8 mm flat connectors and 4 x 6.3 mm flat connectors.

Scope of delivery:
1 x Kemo M240 230 V power controller.
