JUNG Staircase vending machine

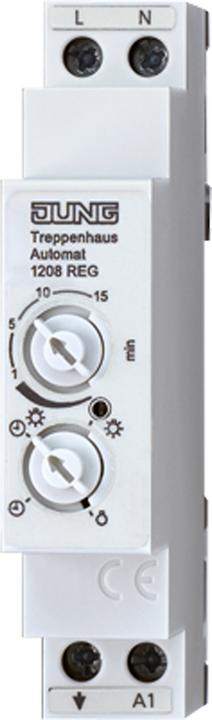

Jung Staircase Automatic 1208 REG

Manufacturer: Jung
Designation: Staircase Automatic
Type: 1208 REG
Function: electronic
Mounting type: DIN rail
Width in division units: 1
Number of contacts as switches: 1
Control voltage 1: 230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50-60 Hz
Rated switching current: 16 A
Max. switching current (cos phi 0.6): 165 A
Fallback delay: 0.1-15 min
Button glow lamp current: 40 mA
Circuit type: 3- and 4-wire circuit
Switch-off pre-warning: none
Selectable pulse function: no
Following switching: follow-up + permanent light + time extension
Supply voltage: 230 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 1200 VA
Max. fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 920 VA

Intended use: Manual or automatic switching of lights in staircases. Mounting on a DIN rail according to DIN EN 60715 in sub-distributors. Switching on via pulse unit or button.

Product features:

• Adjustable follow-up time
• Electronic overload protection for the control input
• Four different operating modes adjustable:
• Automatic function without switch-off warning
• Automatic function with switch-off warning
• Light permanently on
• Light permanently off

Automatic light switching: The pulse unit is combined with a motion detector. As soon as the brightness falls below a value set on the motion detector and movements are detected, the pulse unit cyclically sends a switch-on signal to the REG automatic. This switches the light on for the set follow-up time. After the follow-up time has elapsed, the REG automatic switches the light off. After switching off, pulse units with motion detectors do not detect any movements for about 3 seconds.

EAN: 4011377013827.
