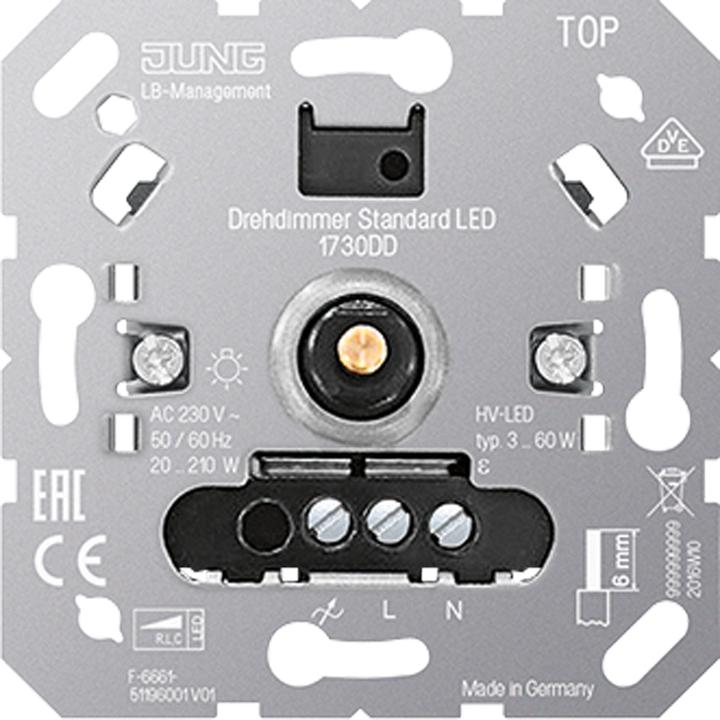

JUNG Rotary Dimmer Std.LED 1730DD

Delivered between Wed, 23.7. and Fri, 25.7.
More than 10 pieces in stock at supplier
free shipping

Product details

Intended use: Switching and dimming of lighting. Operation with suitable cover. Installation in device box with dimensions according to DIN 49073.

Product features: The device operates based on the phase-cut or phase-on principle. Automatic adjustment of the dimming principle suitable for the load. The device can be operated without a neutral wire. Soft start for lamp-friendly switching on. Switching on with the last set brightness or saved switch-on brightness. Switch-on brightness can be permanently stored. Minimum brightness can be permanently stored. Electronic short-circuit protection with permanent shutdown after a maximum of 7 seconds. Electronic over-temperature protection. Power expansion possible through power supplements. Optional accessory: LED compensation module.

Nominal voltage: AC 230. Mains frequency: 50-60 Hz. Standby power: approx. 0.35 W. Power loss: approx. 2 W. Ambient temperature: -5 to 45 °C. Connection power at 25 °C: Incandescent lamps: 20 to 210 W, HV halogen lamps: 20 to 210 W, Electronic transformers: 20 to 210 W, Electronic transformers with NV LED: typically 20 to 60 W, Inductive transformers: 20 to 210 VA, Inductive transformers with NV LED: typically 20 to 60 VA, Dimmable HV LED lamps: typically up to 60 W, Dimmable compact fluorescent lamps: typically up to 60 W. Ohmic-capacitive: 20 to 210 W. Capacitive-inductive: not permitted. Ohmic-inductive: 20 to 210 VA. Ohmic and HV LED: typically up to 60 W. Ohmic and compact fluorescent lamps: typically up to 60 W. Operation without neutral wire: minimum load 50 W. This does not apply to loads with HV LED and compact fluorescent lamps.

Power supplements: see instructions for power supplement. Connection: Screw terminals for solid wire: 1 x 0.5 to 4.0 mm², 2 x 0.5 to 2.5 mm²; fine-stranded without ferrule: 1 x 0.5 to 4.0 mm², 2 x 0.5 to 2.5 mm²; fine-stranded with ferrule: 1 x 0.5 to 4.0 mm², 2 x 0.5 to 1.5 mm². Total length of load line: max. 100 m.

Key specifications

Light switch + socket Type
Rotary dimmers
mounting style
Flush-mounted
Application range
Indoor
Exact colour description
Silver
Item number
22637041

General information

Manufacturer
JUNG
Category
Light switches + Plug sockets
Manufacturer no.
1730DD
Release date
10.10.2022

Colour

Colour
Silver
Exact colour description
Silver

Material

Material
Other

Light switch + socket Features

Light switch + socket Type
Rotary dimmers
Series
Standard Due
mounting style
Flush-mounted

Application range

Application range
Indoor

Light switch properties

Light switch type
Rotary switches

Socket Properties

Nominal voltage
230 V
Area of use
Inside
connector type
Screw terminals

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No
Control type
Rotary switches
Radio frequency
50 Hz

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
3.60 cm
Width
1.70 cm
Height
0.90 cm
Stack depth
32 mm

Package dimensions

Length
10 cm
Width
9 cm
Height
5 cm
Weight
45 g
