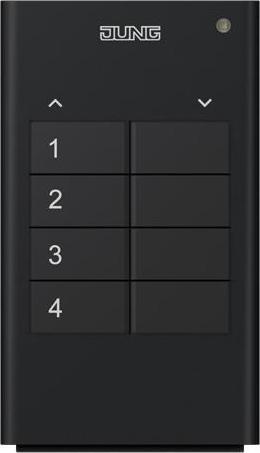

JUNG radio hand-held transmitter

Jung radio hand-held transmitter, 4-channel FM HS 4

Manufacturer: Jung
Designation: Radio hand-held transmitter, 4-channel
Type: FM HS 4

With hand-held transmitter: Yes
Wall transmitter: No
Window transmitter: No
With remote control: Yes
Signal transmission: Radio
Number of channels: 4
Material: Plastic
Halogen-free: Yes
Surface protection: Other
Finish: Matt
Color: Anthracite
Transparent: No
Range: 100 m
Suitable for switches: Yes
Suitable for dimmers: Yes
Suitable for blind switches: Yes
Suitable for display element: No

More details:
New system function: Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0

Intended use: Hand-held transmitter for radio transmission of switching, dimming, blind movement, and scene commands. Operation with radio actuators from the eNet system.

Product features:

• Two adjacent buttons each belong to one channel
• Status display with LED
• Switch-on brightness of dimming actuators can be stored
• Battery-operated device
• Scenes: All-off, seven individual scenes
• Signaling of transmission errors can be switched off
• Can be set with eNet server: Scene All-on, Operation locks
• Additional functions with eNet server: Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0, Update of device software, Read out error memory

Rated voltage: DC 3 V
Battery type: 1 x lithium CR 2450N (included)
Ambient temperature: -5 to +45 °C
Dimensions (L x W x H): 93 x 53 x 15.5 mm
Radio frequency: 868.0 to 868.6 MHz
Transmitting power: Max. 20 mW
Transmitting range in free field: Typ. 100 m
Receiver category: 2
EAN: 4011377086647.
