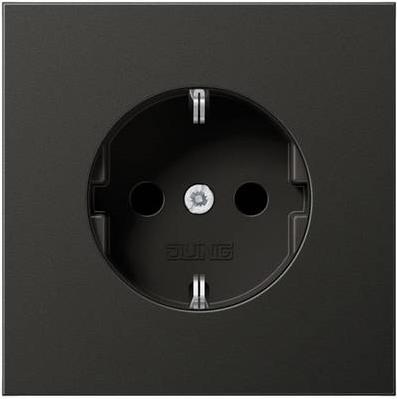

JUNG Protective contact socket without claw

Jung Schuko Socket 16A 250V AL 1520 N AN

Manufacturer: Jung
Description: Schuko socket 16A 250V without claws
Type: AL 1520 N AN
Design: Schuko
Protective contact: yes
Round protective earth contact: no
Number of active contacts (round): 2
With signal lamp: no
With built-in USB power supply: no
Number of units: 1
Number of phases: 1
Printing/labeling: none
Connection type: terminal block
With flap cover: no
With increased touch protection: no
Text field/labeling area: no
Color: anthracite
Metallic color: no
Transparent: no
Lockable: no
Ejection mechanism: no
Insulated installation: no
With functional lighting: no
With orientation light: no
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: without special power supply
Mounting type: flush-mounted
Mounting method: screw fastening
Material: metal
Material quality: aluminum
Halogen-free: yes
Surface protection: painted
Surface finish: matte
Antibacterial treatment: no
With on/off switch: no
With pass-through function: yes
Twisted central insert: no
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20

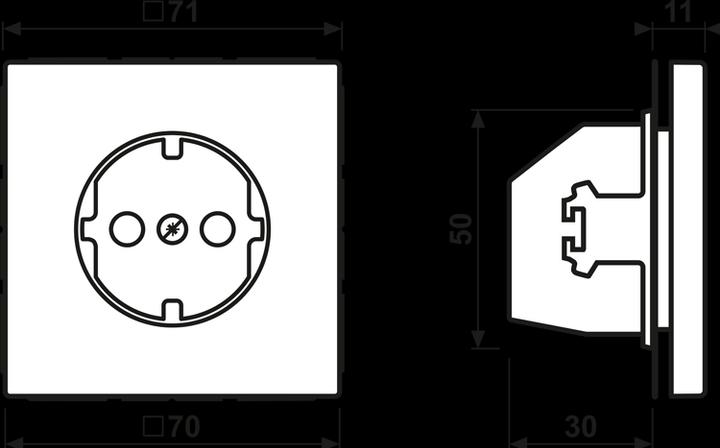

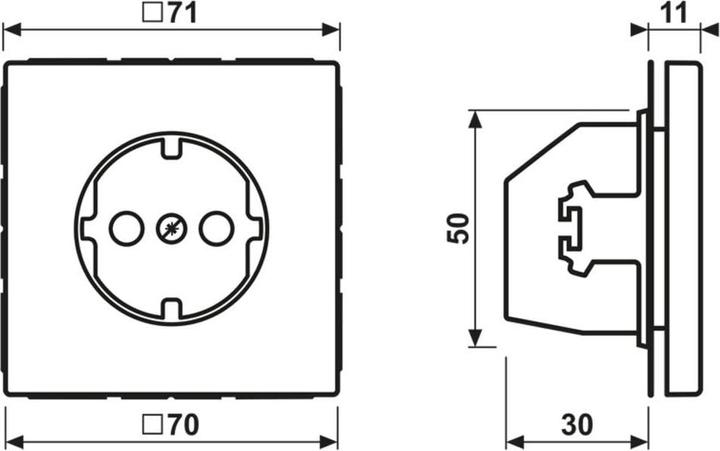

Device width: 70 mm
Device height: 70 mm
Device depth: 0 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
Cover: central plate
For "harsh conditions" (according to VDE): no

Jung Schuko Socket 16A 250V AL 1520 N AN: additional details
Protective contact socket, anthracite (painted aluminum) with spring clamps for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620 (screw fastening, without mounting claws). The load ring is integrated into the protective measure via a grounding rail. Material: painted aluminum. Dimensions (W x H): 70 x 70 mm.
