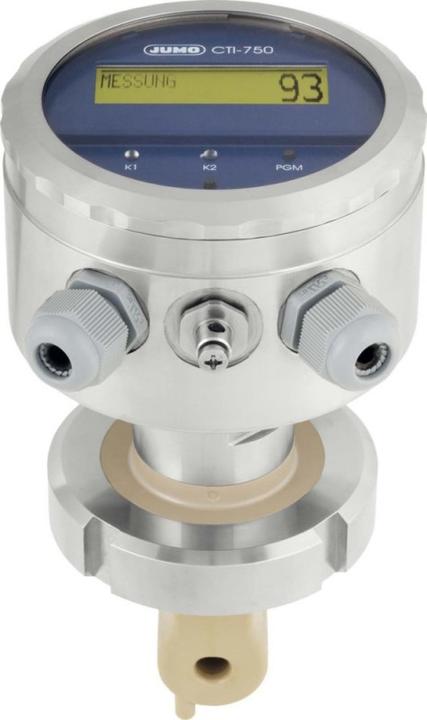

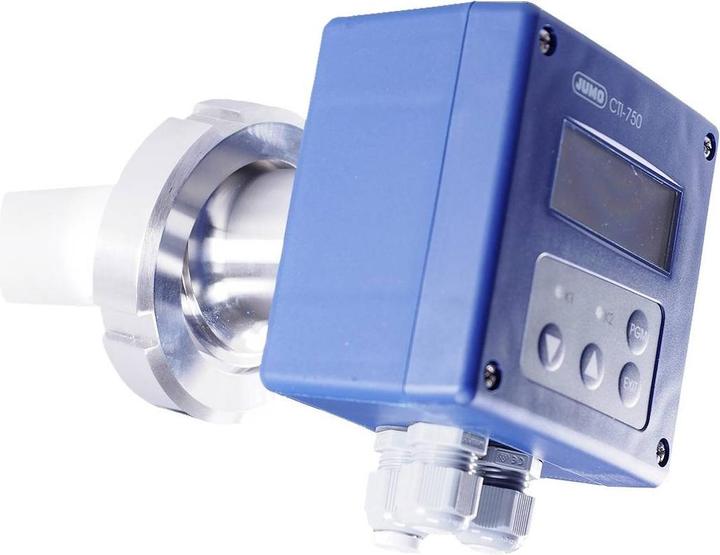

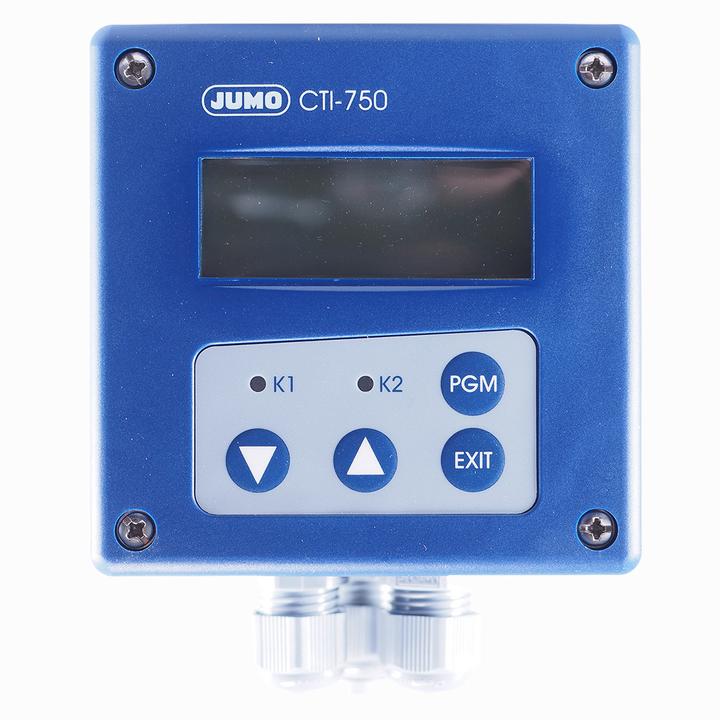

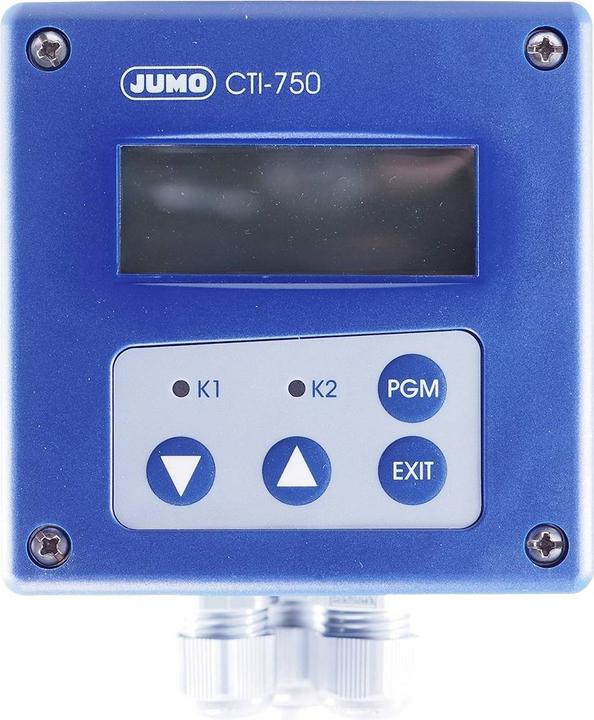

Jumo Transmitter

Jumo Transmitter 20275615607000082768

Manufacturer: Jumo
Designation: Transmitter
Type: 20275615607000082768
Design: inductive
Insertion length: 86 mm
Max. pressure: 10 bar
Max. temperature: 140 °C
Sensor type: Pt1000
Cell constant: other
Electrode material: Polyvinylidene fluoride (PVDF)
Process connection design: other
Process connection material: Stainless steel 316 Ti (1.4571)
Electrical connection design: other
Angle connector: no
Cable length: 0 m

This inductive conductivity/concentration and temperature transmitter with switching contacts and a permanently mounted sensor features two freely programmable analog outputs for conductivity and temperature, as well as two potential-free contacts. Up to four measuring ranges and temperature coefficients can be activated. Temperature compensation can be linear, for natural waters, or as a custom characteristic curve (learning function). Additionally, the device includes a desalting control. It can be operated via display and keyboard or through setup software. The process connection consists of a sensor made of PVDF material with a DN50 pipe fitting, DIN 11851 (MK DN50, milk cone). The power supply is provided by a power supply unit with DC 19...31 V.
