Jumo Transmitter

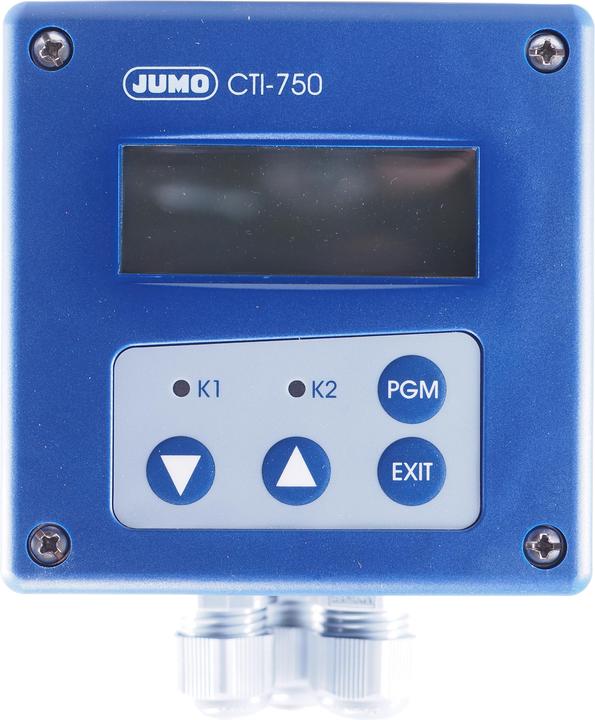

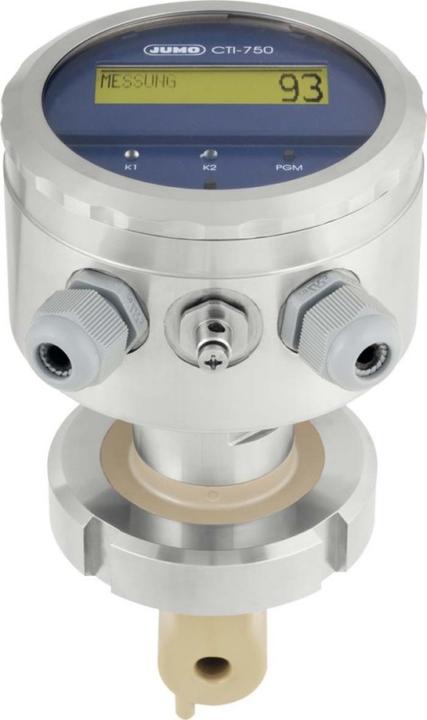

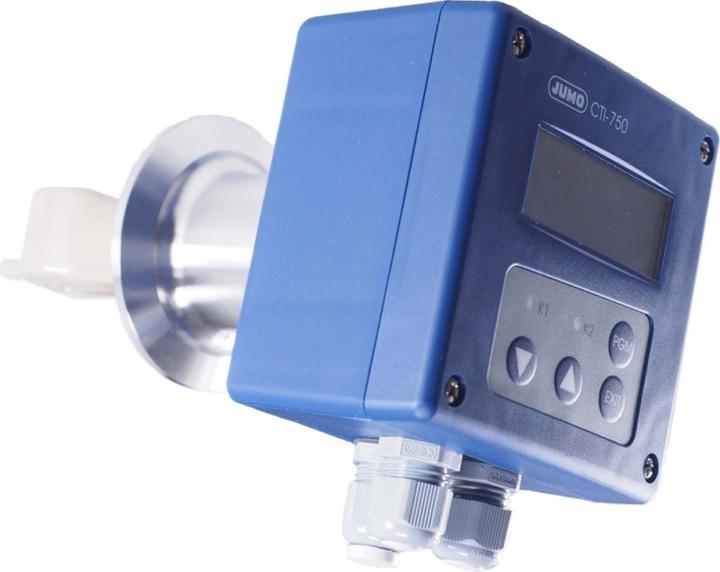

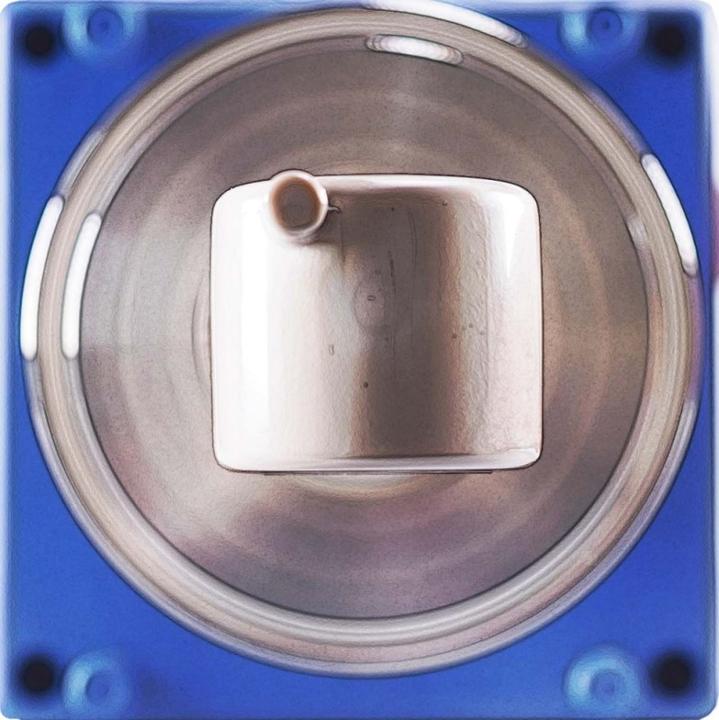

Jumo measuring transducer 202756/15 Manufacturer :Jumo Designation :Measuring transducer 617-0000-82/767,941 Type :202756/15 Version :inductive Insertion length :75 mm Max. pressure :10 bar Max. pressure :10 bar Pressure :10 bar Max. Temperature :140 °C Sensor type :Pt1000 Cell constant :other Electrode material :PEEK Process connection design :other Process connection material :Stainless steel 316 Ti (1.4571) Type of electrical connection :other Angled connector :no Cable length :0 m Jumo measuring transducer 202756/15: Further details This inductive conductivity/concentration and temperature measuring transducer with switching contacts and permanently mounted sensor has two freely programmable analogue outputs for conductivity and temperature as well as two potential-free contacts. Up to four measuring ranges and temperature coefficients can be activated. Temperature compensation can be linear, natural water or as a separate characteristic curve (learning function). The device also has a continuous blowdown control. The device can be operated via display and keypad as well as via setup software. The device has a hygienic sensor made of PEEK material with a clamp 2 1/2 (ISO 2582) as the process connection. Power is supplied via a power supply unit with DC19...31V. EAN: 4053877005483.
