Jumo Relay module

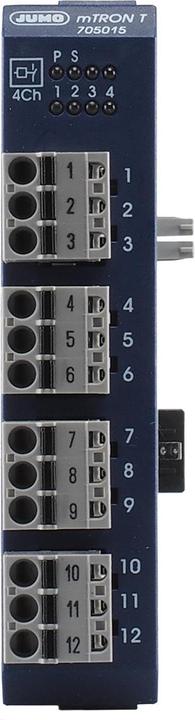

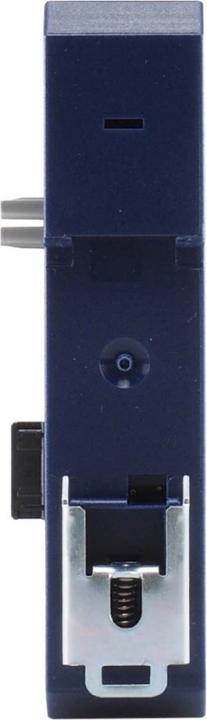

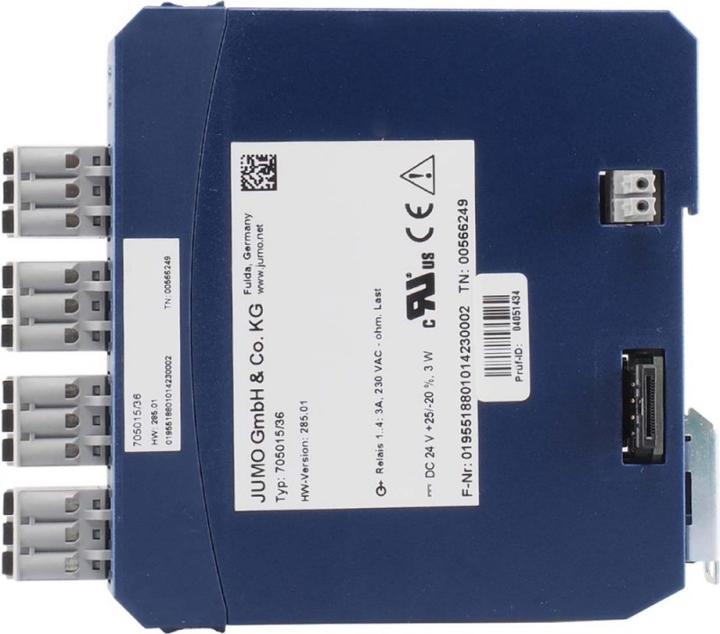

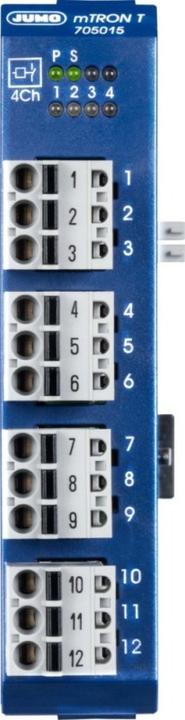

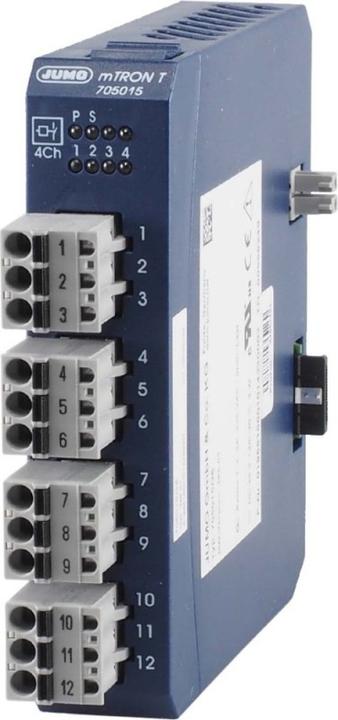

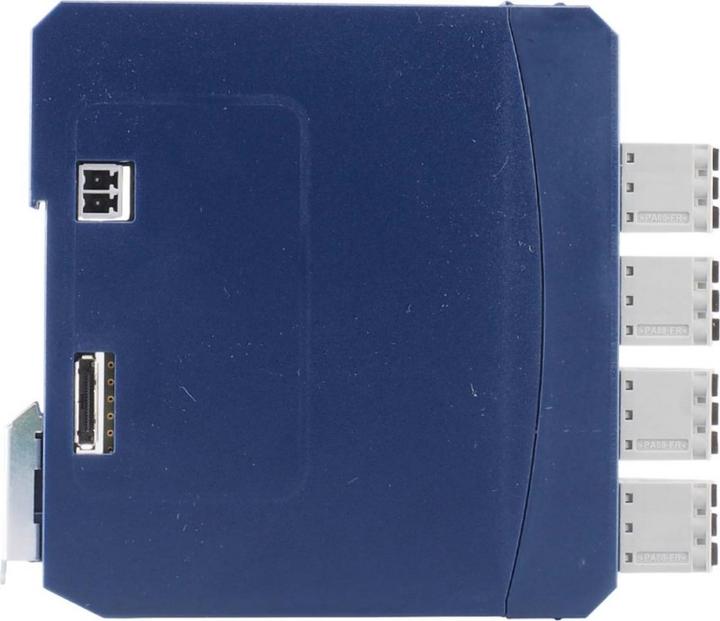

Jumo relay module 705015-36 Manufacturer :Jumo Designation :Relay module 4-channel Type :705015-36 Type of electrical connection :Screw connection Rated control supply voltage Us at AC 50 Hz :0 V Rated control supply voltage Us at AC 60 Hz :0 V Rated control supply voltage Us at DC :19...30 V Voltage type for actuation :DC With removable terminals :no Fault storage possible :no External reset possible :no Number of contacts as changeover contacts :4 Width :23 mm Height :104 mm Depth :102 mm Jumo relay module 705015-36: Further details The relay module (4-channel for top-hat rail mounting, component of the overall mTRON T system) provides four relay outputs that are controlled via the system bus using digital signals (assignment in the connection list or directly from the PLC). directly from the PLC). The relay outputs are each equipped with a changeover contact AC 230 V / 3 A. The presence of the power supply, the operating status of the module and the status of the relay outputs are indicated by LEDs. The module insert can simply be pulled forwards out of the housing for servicing. The housing, including the backplane, remains mounted on the top-hat rail. The power supply is DC 24 V +25/-20 %. EAN: 4053877000297.
