Jumo Pressure transmitter 43006709
6 pieces in stock at supplier
Product details

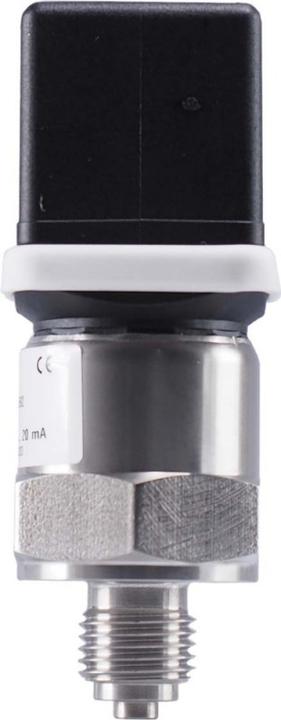

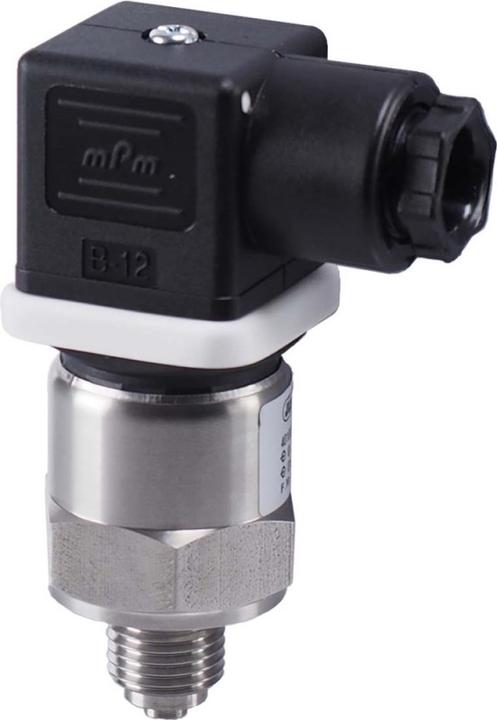

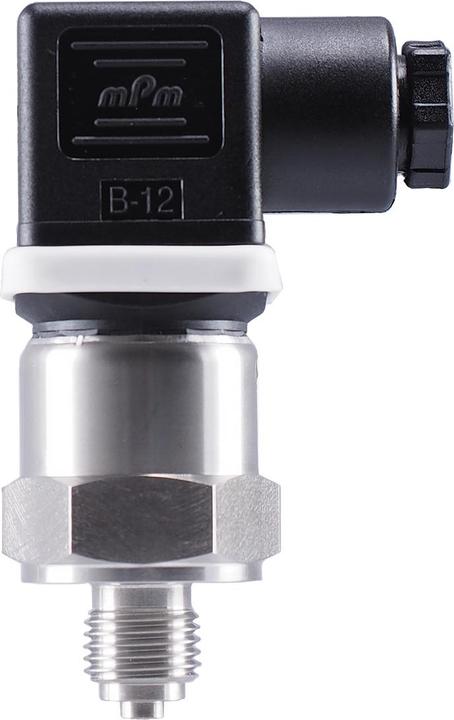

Jumo Pressure Transmitter 43006709
Manufacturer: Jumo
Designation: Pressure Transmitter 0-6 bar rel.
Type: 43006709
Process Temperature: -30 to 120 °C
Analog Output 0 mA to 20 mA: no
Analog Output 4 mA to 20 mA: yes
Analog Output 0 V to 2 V: no
Analog Output 0 V to 5 V: no
Analog Output 0 V to 10 V: no
Analog Output 2 V to 10 V: no
Ambient Temperature: -20 to 100 °C
Weight: 0.2 kg

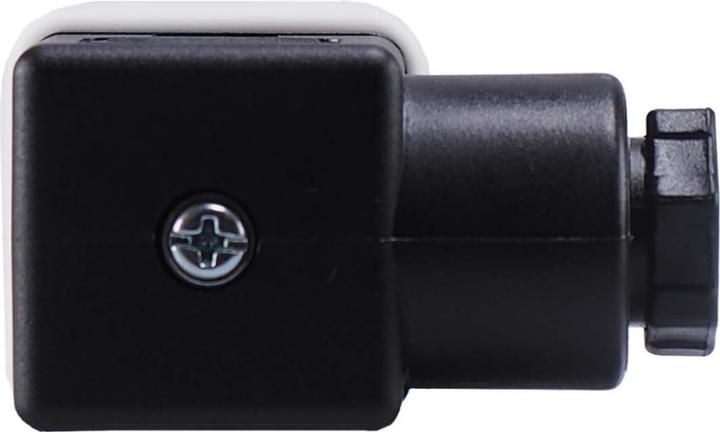

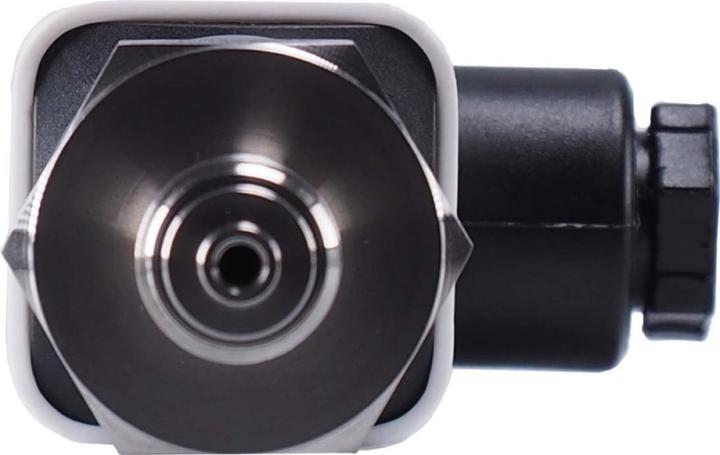

The pressure transmitter can be used to measure the relative pressure in liquid and gaseous media. The product operates based on the thick-film strain gauge measurement principle. The base material of the pressure sensor is aluminum oxide ceramic (Al2O3). The measured pressure is converted into an electrical standard signal. The process connection is realized through a G 1/4 according to DIN EN 837 and is made of stainless steel (1.4305). The sealing is made of FPM, and the electrical connection is made via a terminal box.
