Jumo 701511/8-0000-23/000

Jumo Digital Indicator 00694784

Manufacturer: Jumo
Designation: Digital Indicator
Type: 00694784

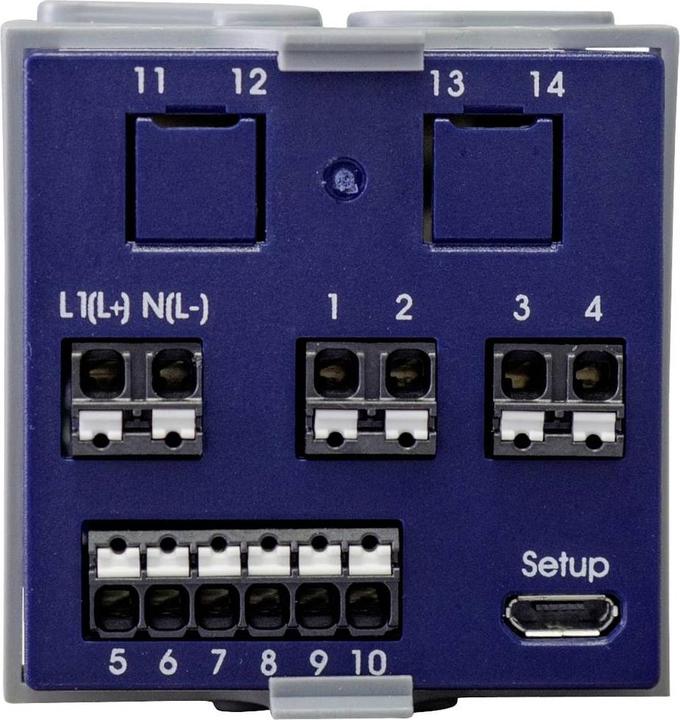

Electrical connection type: Spring terminal connection
Rated control supply voltage Us at AC 50 Hz: 110..240 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 0 V
Voltage type for operation: AC/DC
With removable terminals: no
Number of measurement circuits: 1
Error storage possible: no
External reset possible: no
Number of contacts as normally open: 2
Temperature measurement range: -270..2500 °C
Resistance measurement range: 0..4000 Ohm
Width: 48 mm
Height: 48 mm
Depth: 78 mm

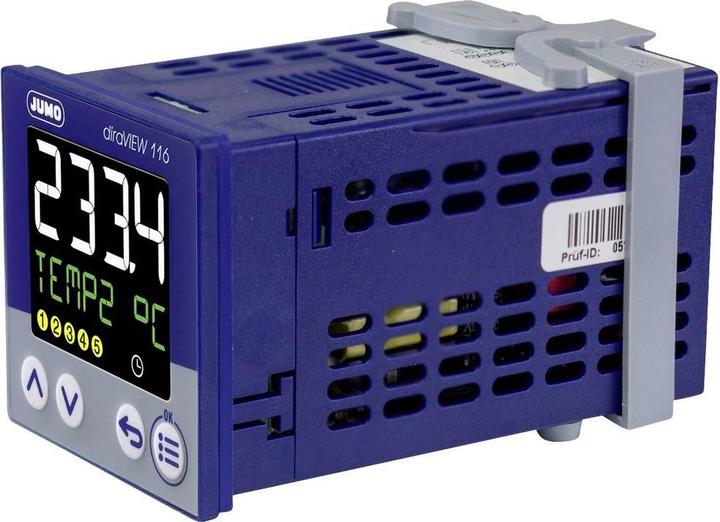

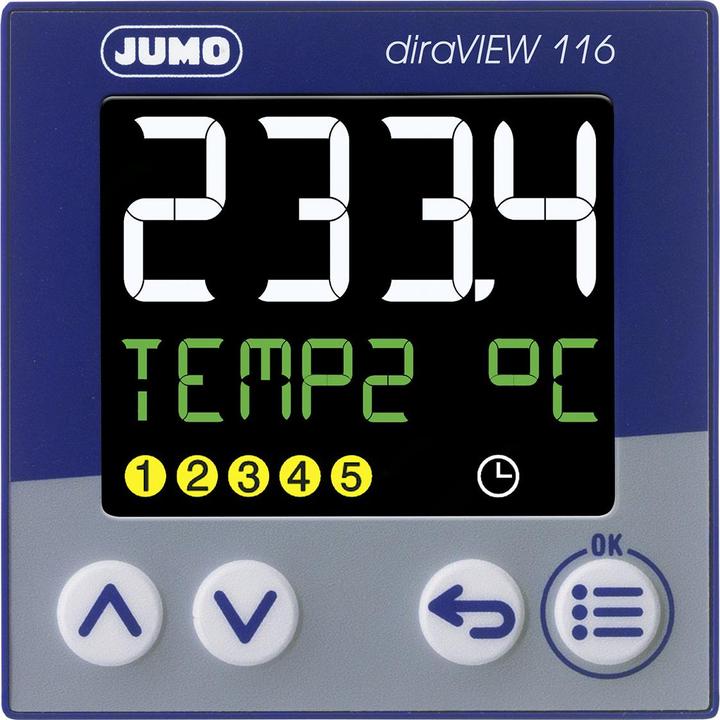

The universally applicable digital indicator in DIN format is suitable for front mounting to display temperature, pressure, and other process variables. The device features a simple, clearly structured operation supported by texts. Process values and parameters are displayed through two 18-segment LCD displays. Additionally, the model has individual display elements for the switching positions of the outputs as well as for manual operation, ramp function, and timer. The indicator is operated via a membrane keyboard with four keys and can be used under harsh environmental conditions due to its high protection class IP65.

The digital indicator has a min-max value display function, hold function, tare function, limit monitoring, digital control signals, extensive timer functions, and a service counter. With the help of the setup program (including program editor and ST editor), it can be conveniently configured with a PC. During configuration via the USB interface, no separate power supply is required (USB-powered). The hardware also includes a universal input, two relay outputs (normally open), a digital input, and a digital input/output. The power supply range is AC 110 to 240 V, 48 to 63 Hz.
