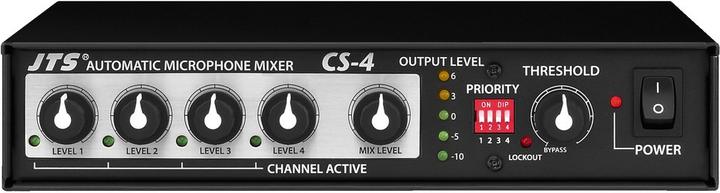

JTS Microphone Mixer CS-4

The automatic microphone mixers of the CS series are the ideal tool for multi-microphone setups, such as those commonly found in conference or meeting rooms, churches, or language labs. The main function of these mixers is to activate microphones only when they are needed and to mute them again once the speaker has finished their presentation. This intelligent control of the individual microphone channels occurs completely silently and with such precision that not a single syllable from the speaker is missed. The positive effects on the overall sound are significant: feedback and distracting background noises are minimized, and the sound gains clarity and transparency. To maintain the room atmosphere and prevent the sound impression from abruptly cutting off, the CS mixers are equipped with a Last-In function – a light ambient sound remains even during conversation pauses.

Automatic Microphone Mixer

• 4 channels
• 3 operating modes: Automatic mode, Priority, or 4/1 channel mixer

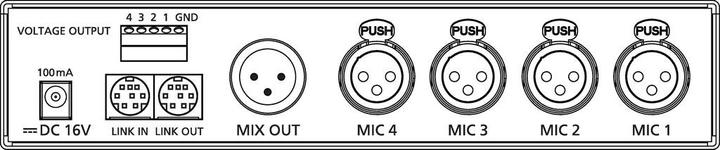

• Balanced XLR inputs, switchable Mic/Line
• 12V phantom power
• Mix output, switchable Mic/Line
• Trigger outputs for external devices such as warning lights, cameras, or speakers
• Status LEDs

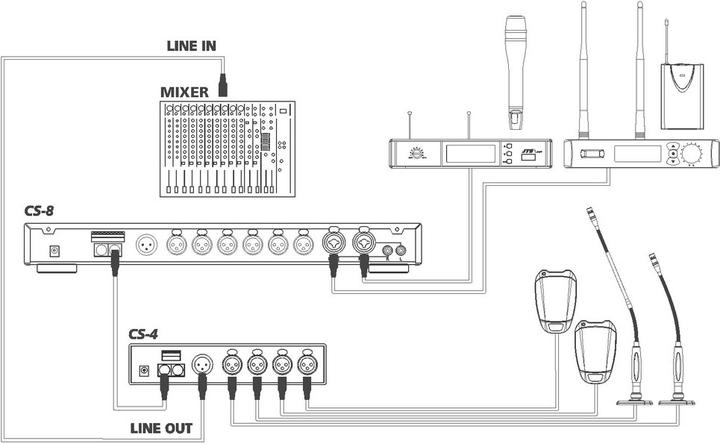

• Link connections for connecting multiple devices (cables included)
• Desktop metal housing
• 482 mm rack mount (19") with included mounting brackets

Safety and Warning Information
The device is powered by potentially lethal mains voltage. Therefore, never attempt to make any modifications yourself and do not insert anything into the ventilation openings. There is a risk of electric shock.
