Jonsbo U5

mATX, Mini-ITX, ATX
1Ratings
BrandMore from Jonsbo
Delivered between Tue, 10.6. and Mon, 16.6.
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

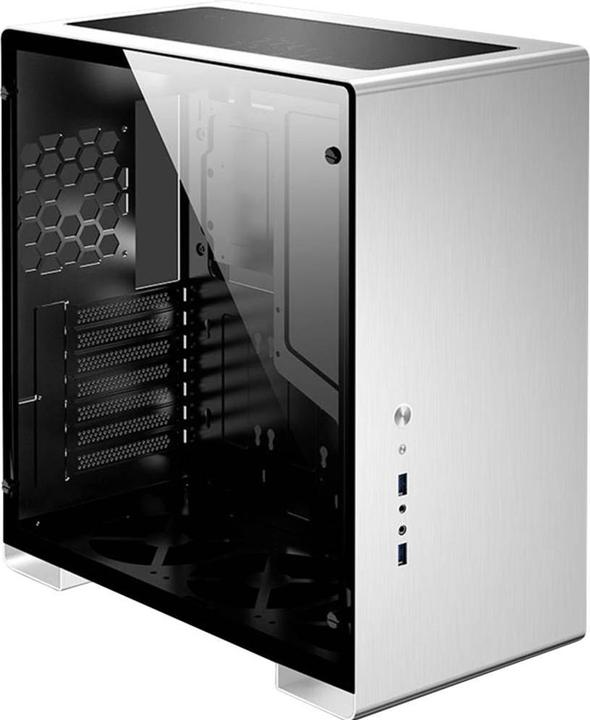

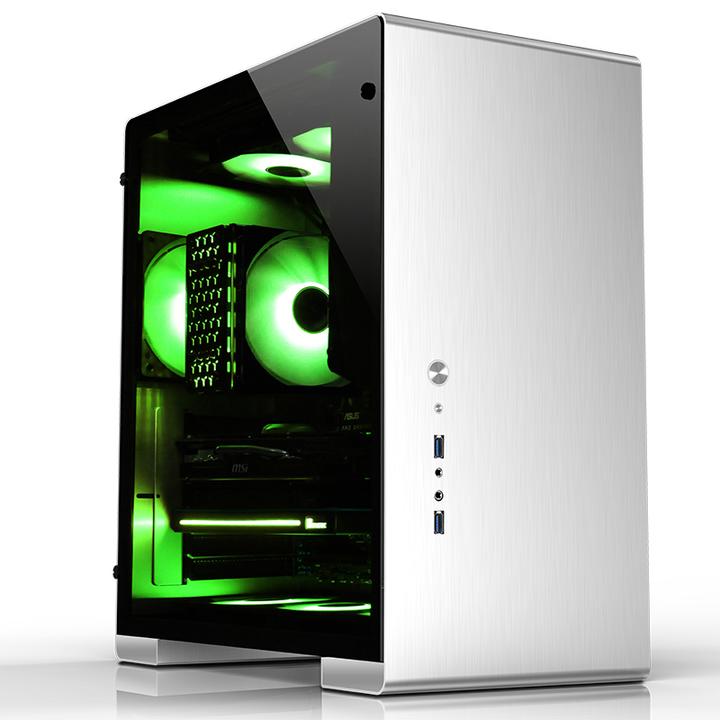

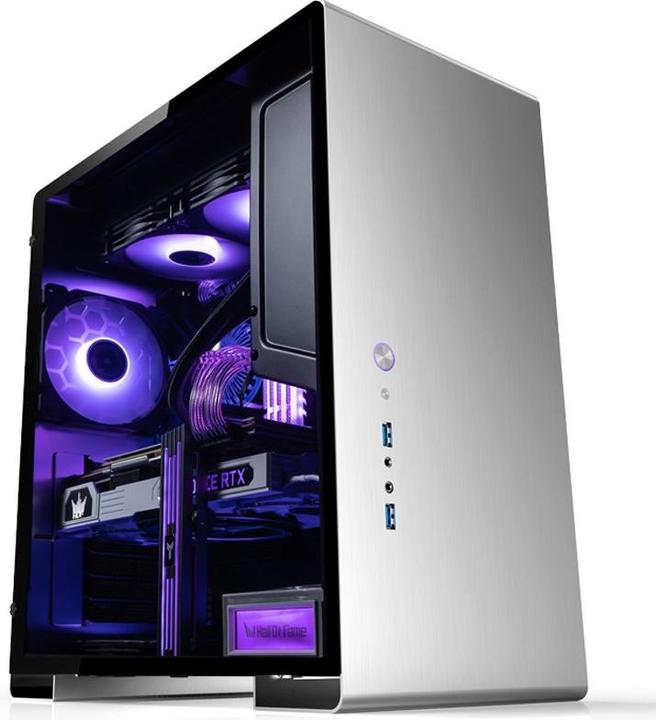

The U5 is a product developed based on ATX motherboard specifications. The chassis is made from a 2.0 mm aluminum-magnesium alloy. The main purpose of the U5 development is to further optimize the length support for the graphics card and power supply of the Jonsbo aluminum case in the mid-range, increase the height support for cable management at the back panel, and optimize the upper spacing for better support of the liquid cooler. For heat dissipation, three fans at the bottom enhance the airflow of the case, thereby optimizing the overall heat dissipation performance. Thanks to numerous optimizations, there are no longer any limitations on supporting high-end hardware, allowing users to easily build an unlimited high-performance computer platform with an elegant metal texture.

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
2 x
Max. length graphics card
350 mm
Front connectors
2x USB 3.0, Audio in/out
PC case features
Side windows
Max. height CPU cooler
165 mm
Item number
13369338

General information

Manufacturer
Jonsbo
Category
PC case
Manufacturer no.
U5 SILVER
Release date
24.6.2020
External links
Manufacturer's site (de)

Colour

Colour
Black, Transparent, White
Exact colour description
Black, Transparent, White

Material

Material group
Glass, Metal
Material
Aluminium, Glass, Steel, Toughened glass

PC case properties

PC case design
Midi Tower
Form factor
ATX, Micro ATX (mATX), Mini-ITX
Number of 3.5" drive slots (external)
0 x
Number of 3.5" drive slots (internal)
2 x
"Number of 2.5""/3.5"" combination slots"
2 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
7 x
Max. length graphics card
350 mm
Max. height CPU cooler
165 mm
PC case features
Side windows

Connections

Front connectors
2x USB 3.0, Audio in/out

Cooling properties

Number of fans
6 x
Number of fan slots
7 x
Radiator locations
Aspect
Cooling properties
Water cooling possible

Rear side

Fan mount locations
1x 120mm

Bottom side

Fan mount locations
3x 120mm

HDD Cage

Fan mount locations
1x 120mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cable management

Product dimensions

Height
44 cm
Length
41.80 cm
Width
21.90 cm
Weight
7.20 kg

Package dimensions

Length
53 cm
Width
52 cm
Height
30 cm
Weight
8.60 kg
