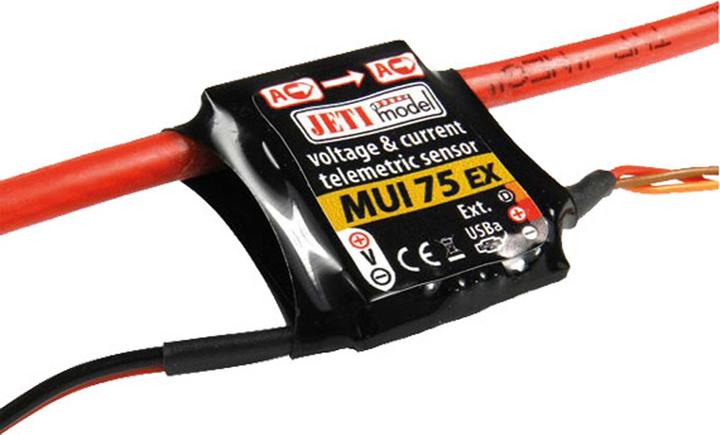

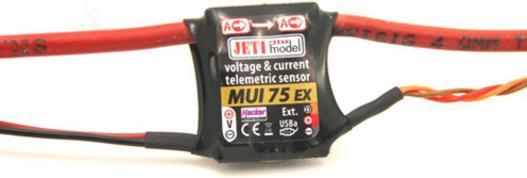

Jeti Voltage/current sensor MUI 75 A 2.4EX duplex (8595245909598)

The MUI sensors are designed for measuring voltages, currents, and consumed battery capacity in the model. The JETIBOX terminal is used to display the measured values, while the DUPLEX system operates at 2.4GHz for wireless transmission of information. This system allows for the transmission of remote control data to the model and feedback from the model back to the transmitter. The telemetric data obtained during operation are transmitted in real time, and the current status of the measured quantities can be displayed on the LCD screen of the JETIBOX.

The MUI telemetric sensors enable the measurement of voltages and currents in your model and transmit this information using the DUPLEX system (receiver and transmitter module). With high current measurement accuracy, these sensors track the consumed capacity of the measured battery. The MUI unit records not only the duration of the current flow but also the average and maximum values of the current. Additionally, it provides exact voltage values, including their minimum and maximum.

The JETIBOX terminal is also used for setting parameters and displaying the measured values. The MUI sensors allow for the setting of an acoustic signal when parameters are exceeded. This alarm signal can be configured for maximum current, minimum voltage, and maximum permissible capacity consumption. The acoustic signal is generated by the transmitter module via a built-in sound generator, with individual alarm messages distinguished by the assignment of a Morse alphabet letter. Acoustic signals for parameter overruns are generated even if no JETIBOX is connected. When a JETIBOX is connected, the LCD display indicates which parameter has been exceeded. If multiple parameters are exceeded, the acoustic signals and LCD display alternate.
