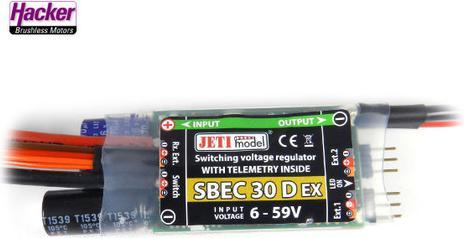

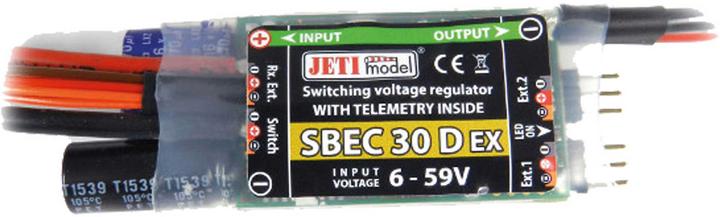

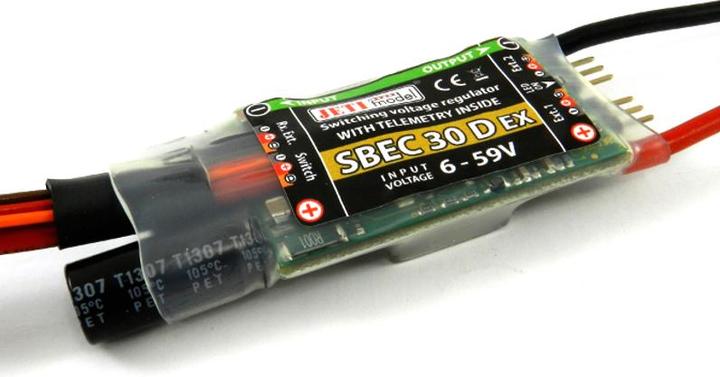

Jeti model SBEC 30 D

Ratings
Delivered between Wed, 16.7. and Sat, 19.7.
Only 3 pieces in stock at supplier
free shipping

Product details

Powerful BEC with adjustable output voltage. Supplies your receiver system from the drive battery. The settings can be adjusted via the device overview of the Jeti transmitters DC/DS or the JetiBox. The on/off switching is done here with the familiar magnetic switch. The SBEC 30 D has fully integrated telemetry capabilities and features an electronic fuse against overload.

• Adjustable output voltage in 0.1 V steps: 5-8.4 V
• Supply voltage: 6-59 V
• Number of LiXX battery cells: 2 - 15
• Continuous output current: 8 A
• Peak output current: 30 A
• Telemetry via EX Bus (battery voltage, current flow, capacity, temperature, ...)
• Resetting telemetry values via EX Bus/assigned switch on DC/DS transmitter possible
• Expander function for connecting 2 additional sensors
• Optional control via RC switch (not included)

Technical specifications:
Recommended input voltage [V]: 6–59
Max. input voltage [V]: 59
Adjustable output voltage [V]: 5.0-8.4 V
Pulse current at output [A]: 30 A (5 s)
Temperature range [°C]: -20 to +85
Weight [g]: 50
Dimensions [mm]: 72 x 30 x 12
Power consumption in off state: 130 µA at 15S LiXX battery, 70 µA at 2S LiXX battery.

Key specifications

Item number
10095414

General information

Manufacturer
Jeti
Category
RC controllers + receivers
Manufacturer no.
22985499
Release date
12.11.2018
External links
Manufacturer's site (de)

Receiver Features

Operating voltage
59 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Power supply

Product dimensions

Length
2.80 cm
Width
7.20 cm
Height
1.40 cm
Weight
50 g
