Jeti DUPLEX 2.4EX Central Box 220 + 2x Rsat2

Ratings
Delivered between Thu, 17.7. and Tue, 22.7.
Only 3 pieces in stock at supplier
free shipping

Product details

Product Description and Features

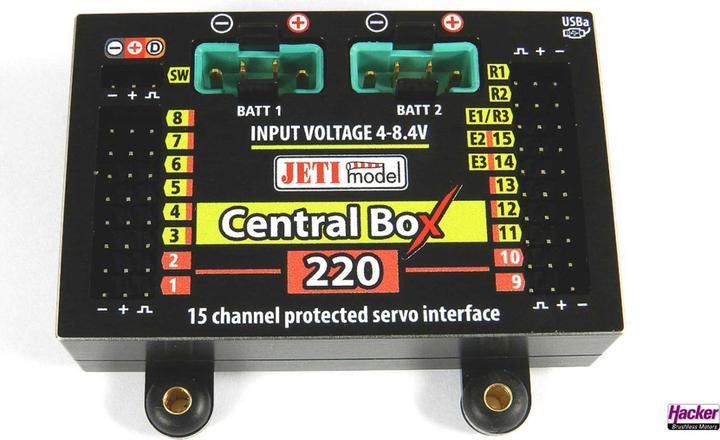

The Central Box 220 is the successor to the popular Central Box 200. Specifically designed for the use of powerful and power-hungry servos, the Central Box 220 features an aluminum housing and enhanced overcurrent protection for the servo ports. It offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.

Configuration via JETI Duplex DS/DC Transmitters

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 220 can be utilized. The device overview of the JETI Duplex DS/DC transmitter allows for easy configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignments, and more.

Power On and Off Process

The power on and off process of the Central Box 220 is carried out using the included magnetic switch.

Recommended Receivers

Receivers such as 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, providing a Central Box with gyro stabilization.

Features

  • Configurable servo outputs
  • Protected servo outputs (max current 11x 10A and 4x 30A)
  • Battery connections 2x MPX connector system
  • Robust aluminum housing for additional cooling and protection
  • Firmware updatable via JETI USB adapter and JETI Studio
  • Wirelessly programmable via the device overview of the DC/DS transmitters
  • Up to 3 independent receiver inputs (R1, R2, E1/R3)
  • Up to 15 servo ports (suitable for DITEX servo telemetry)
  • Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
  • Input for the included magnetic switch or optional RC switch

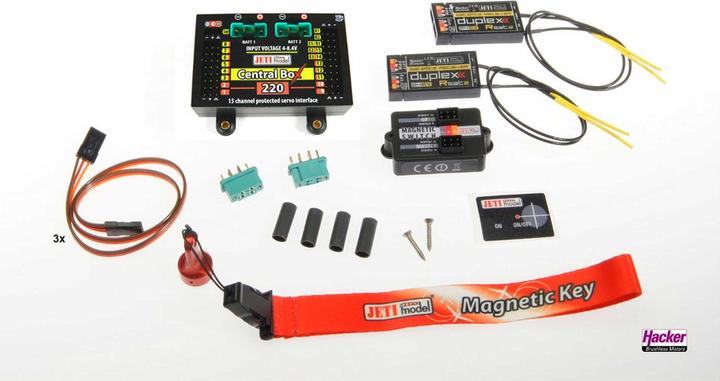

Delivery Contents

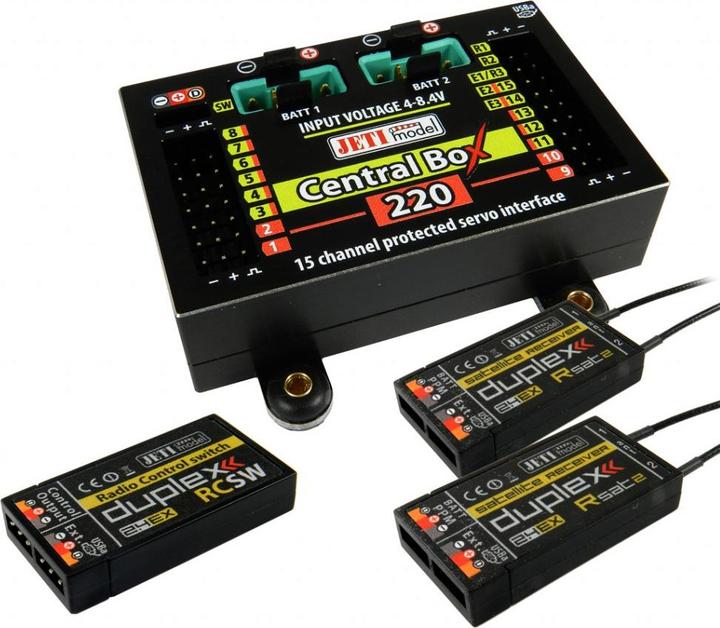

1 JETI Duplex 2.4EX Central Box 220, 1 magnetic switch, 1 magnetic key, 2 JETI Duplex 2.4EX RSat2 receivers, and 3 patch cables.

Key specifications

Item number
12669583

General information

Manufacturer
Jeti
Category
RC controllers + receivers
Manufacturer no.
80001679
Release date
5.2.2020

Colour

Colour
Black

Receiver Features

Operating voltage
8.40 V

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 JETI Duplex 2.4EX Central Box 220, 1 magnetic key, 1 magnetic switch, 2 JETI Duplex 2.4EX RSat2 receivers and 3 patch cables.

Product dimensions

Length
4.20 cm
Width
6.60 cm
Height
1.80 cm
Weight
65 g
