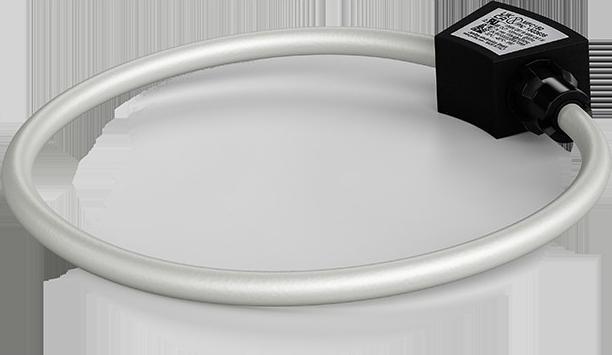

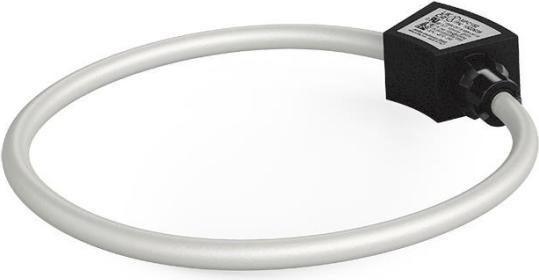

Janitza 1503635 Rogowski coil Ø 120mm
Delivered between Fri, 30.5. and Tue, 10.6.
Only 4 items in stock at supplier
Only 4 items in stock at supplier
Product details
The 1503635 Rogowski coil from Janitza is a highly advanced measuring instrument specifically designed for capturing currents in busbars and cables. With an inner diameter of 120 mm and a flexible design, this passive coil allows for easy installation and handling. It is UL certified and offers high accuracy in measuring currents up to 8,000 A. The output signal of 100 mV per kA at 50 Hz (RMS) ensures precise measurements. The coil is suitable for a frequency range of 40 Hz to 20 kHz and can operate within a wide temperature range of -30 to +80 °C. With a rated insulation voltage of 1 kV CAT III, it is designed for demanding applications. The 3 m long connection cable and the bayonet lock provide a secure connection and ease of use.
- Flexible and passive Rogowski coil for precise current measurements
- Suitable for UMG 96-PQ-L-LP with currents up to 8,000 A
- Output signal of 100 mV/kA at 50 Hz (RMS)
- Frequency range of 40 Hz to 20 kHz
- Operating temperature of -30 to +80 °C.
