Intel Nuc5cpyh

Intel Celeron N3050
Currently out of stock
Free shipping starting at 50.–

Product details

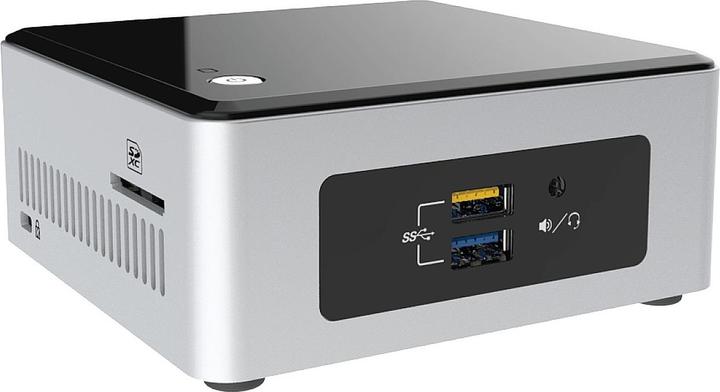

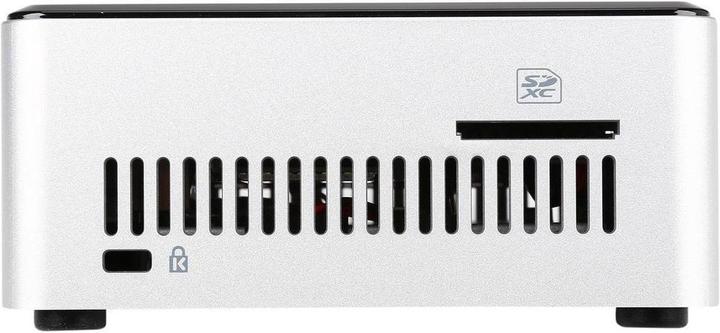

The Intel NUC5CPHY Barebone is one of the most comprehensively equipped Intel NUCs. It is based on an Intel Celeron dual-core processor and offers features such as a VGA port, an SDXC memory card slot, a TOSLINK audio output, four USB 3.0 ports, support for 4K video format, and WLAN according to the 802.11ac standard. A Kensington lock on the base unit enhances the security of your IT resources and allows for use in public places. The NUC5CPYH is an intelligent choice for versatile needs—whether for private users looking for an entry-level device or for companies seeking an affordable mini-PC. The NUC5CPYH features four fast USB 3.0 ports, one of which has a charging function, allowing you to quickly and easily charge your tablet or smartphone. With WLAN based on the modern AC standard, Bluetooth, and 7.1 surround sound (via HDMI), the Barebone is ideal for private use, such as a home theater PC, media server, or computer hub for your home. Intel Braswell processors, like the installed Celeron N3050, are energy-efficient SoCs (System on a Chip) that do not overheat even under full load, thanks to their 14nm architecture. They support Turbo Boost 2.0, dynamically adjusting performance to meet your needs. Depending on demand, the processor delivers more power or operates particularly energy-efficiently.

Key specifications

Number of processor cores
2 -Core
Graphics card model
Intel HD Graphics
Internal connection options
M.2 (1x)S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x)VGA (1x)
Memory type
DDR3L-RAM
USB ports
USB-A
Item number
5334810

General information

Manufacturer
Intel
Category
Barebones
Manufacturer no.
BOXNUC5CPYH
Release date
14.3.2017
External links

Barebone properties

Design
Ultra Slim

Processor

Processor type
Intel Celeron N3050
Clock frequency
1.60 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
2
Socket
FCBGA1170
Max. turbo clock rate
2.16 GHz
Max. TDP
6 W
Processor properties
64-bit architectureIntel Virtualisation Technology (VT-x)Onboard processor

Memory

Memory type
DDR3L-RAM
Memory form factor
SO-DIMM
Number of pins
204 x
Memory chip compatibility
DDR3-1333 (PC3-10666)DDR3-1600 (PC3-12800)
Memory Slots available
1
Max. memory slots
1
Max. RAM
8 GB
Memory voltage
1.35 V

Graphics card properties

Graphics card model
Intel HD Graphics
Max. connected monitors
2 x

Internal connections

Internal connection options
M.2 (1x)S-ATA III (1x)
Data storage controller
Intel onboard
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
BluetoothWLAN
Wi-Fi standard
Wi-Fi 5 / 802.11ac

Video connections

Video connections
HDMI (1x)VGA (1x)

Audio connections

Audio outputs
Coaxial S/PDIF (1x)

Card reader properties

Memory card type
SDXC

Power supply properties

Power
65 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

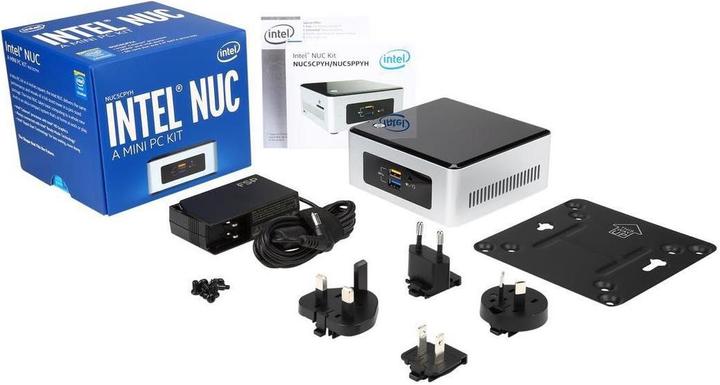

Scope of delivery
VESA kit

Product dimensions

Width
111 mm
Length
115 mm
Height
51.60 mm

Package dimensions

Length
13 cm
Width
13.80 cm
Height
11.60 cm
Weight
1.09 kg
