Product details

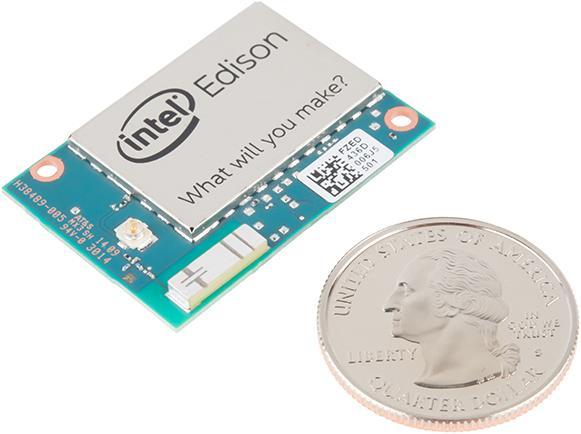

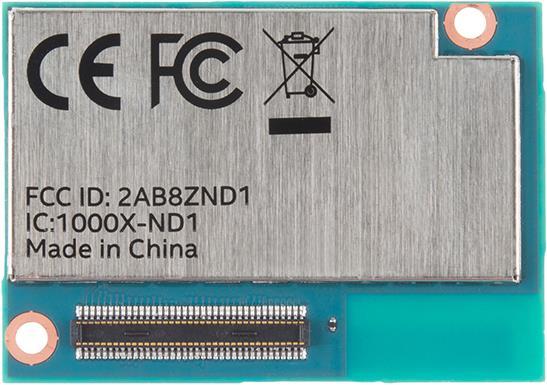

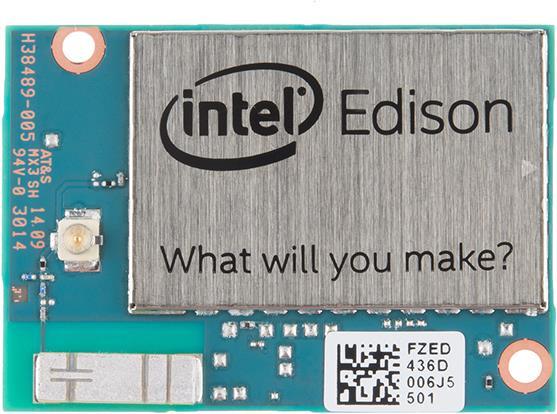

The Intel Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still
providing the same robust strength of your go-to single board computer. Powered by the Intel Atom SoC dual-core CPU and including an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like “Blocks” which can be stacked on top of each other. It’s no wonder how this little guy is lowering the barrier of entry on the world of electronics!
The Intel Edison packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a makers, inventors, and beginners. This is a module with a high speed processor and WiFi and Bluetooth Radios on board. It’s low power and small footprint make it ideal for projects that need a lot of processing power, but don’t have the ability to be near a larger power source or have a large footprint.

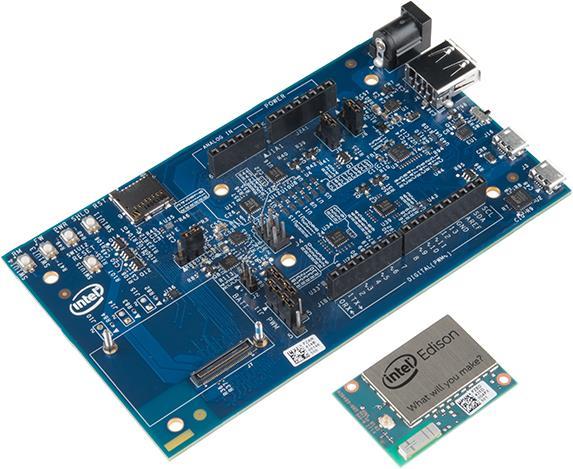

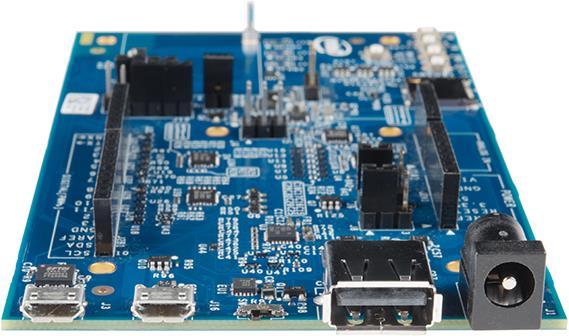

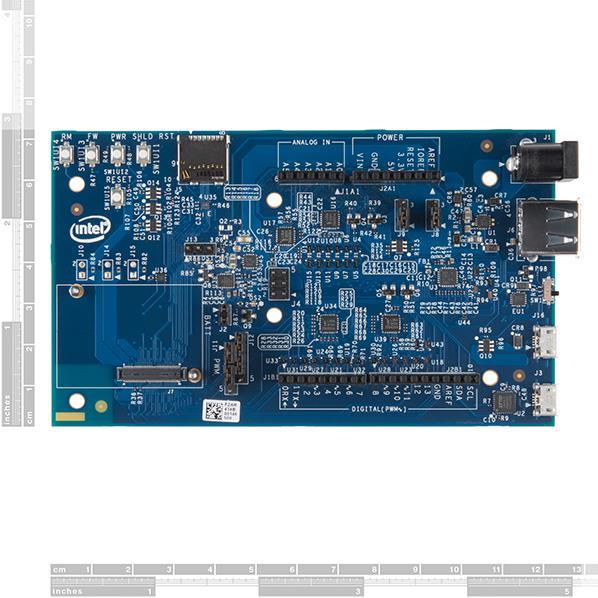

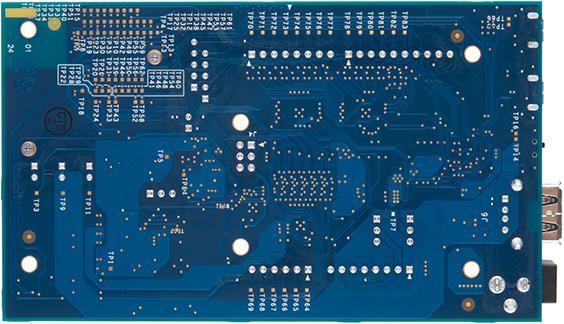

This kit also includes a Arduino Breakout, which essentially gives your Edison the ability to interface with Arduino shields or any board with the Arduino footprint. Digital pins 0 to 13 (and the adjacent AREF and GND pins), analog inputs 0 to 5, the power header, ICSP header, and the UART port pins (0 and 1) are all in the same locations as on the Arduino Uno R3 (Arduino 1.0 pinout). Additionally, the Intel Edison Arduino Breakout includes a micro SD card connector, a micro USB device port connected to UART2, and a combination micro USB device connector and dedicated standard size USB 2.0 host Type-A connector (selectable via a mechanical microswitch). Though this kit won’t turn your Edison into an Arduino itself, you will, however, gain access to to the Arduino’s shield library and resources!
Includes a Intel Edison (EDI1.SPON.AL.S) and a Arduino Breakout Board.
The Intel Edison packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a makers, inventors, and beginners. This is a module with a high speed processor and WiFi and Bluetooth Radios on board. It’s low power and small footprint make it ideal for projects that need a lot of processing power, but don’t have the ability to be near a larger power source or have a large footprint.
This kit also includes a Arduino Breakout, which essentially gives your Edison the ability to interface with Arduino shields or any board with the Arduino footprint. Digital pins 0 to 13 (and the adjacent AREF and GND pins), analog inputs 0 to 5, the power header, ICSP header, and the UART port pins (0 and 1) are all in the same locations as on the Arduino Uno R3 (Arduino 1.0 pinout). Additionally, the Intel Edison Arduino Breakout includes a micro SD card connector, a micro USB device port connected to UART2, and a combination micro USB device connector and dedicated standard size USB 2.0 host Type-A connector (selectable via a mechanical microswitch). Though this kit won’t turn your Edison into an Arduino itself, you will, however, gain access to to the Arduino’s shield library and resources!
Includes a Intel Edison (EDI1.SPON.AL.S) and a Arduino Breakout Board.
| Memory | 1000 MB |
| Level | Advanced |
| Processor family | AVR, Intel |
| Processor type | ATmega328P, Corpuscle |
| Documents | |
| Item number | 5998740 |
| Manufacturer | |
| Category | |
| Manufacturer no. | DEV-13097 |
| Release date | 11/22/2016 |
| Target group | Adults |
| Level | Advanced |
| Development board type | Board |
| Processor family | AVR, Intel |
| Processor type | ATmega328P, Corpuscle |
| Clock speed | 16 MHz |
| Memory | 1000 MB |
| Number of cores | 2 |
| Flash memory | 32 kB |
| Power supply | Electrical connection, USB power delivery |
| Operating voltage | 5 V |
| Wireless transmission | Bluetooth, Wi-Fi |
| Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
| Bluetooth version | 4.0 LE |
| Data ports | 2 x Micro USB, USB 2.0 |
| Analogue inputs | 6 |
| Digital outputs | 4 |
| Digital inputs | 16 |
| Number of I/O | 20 |
| Memory card type | SD |
| Additional connections | GPIO, I2C, I2S, SPI |
| Scope of delivery | 2 x Micro-B USB to Standard-B USB cable, Power supply |
| Length | 16 cm |
| Width | 9 cm |
| Height | 4.50 cm |
| Weight | 148 g |
Specifications may include unverified machine translations.
