Name: Core Ultra 5 225
Brand: Intel
SKU: 53974720
Price: 164 CHF
Availability: InStock
Rating: 5 (6 reviews)

productDetailPageQuery

Intel

The Intel Core Ultra 5 225 processor is a powerful processor designed for desktop applications. With a base frequency of 3.3 GHz and a boost frequency of up to 4.9 GHz, this processor delivers high computing power for demanding tasks. It belongs to the Intel Core Ultra 5 family and utilizes the FCLGA1851 socket. The integrated neural processing unit (NPU) with Intel AI Boost enables support for various AI software frameworks, including DirectML, OpenVINO, and ONNX RT, making it particularly suitable for artificial intelligence applications. The processor supports up to 192 GB of DDR5 SDRAM and offers efficient performance through its 10 cores, which consist of a combination of high-performance and efficient cores. With a cache size of 20 MB, the Core Ultra 5 225 ensures fast data processing and access.

- Neural processing unit (NPU) with Intel AI Boost for AI applications
- Support for up to 192 GB of DDR5 SDRAM
- 10 cores with a combination of high-performance and efficient cores
- Integrated graphics with HDMI 2.1 and DisplayPort 2.1 outputs
- Support for Intel Thunderbolt 4 and PCI-Express 5.0.

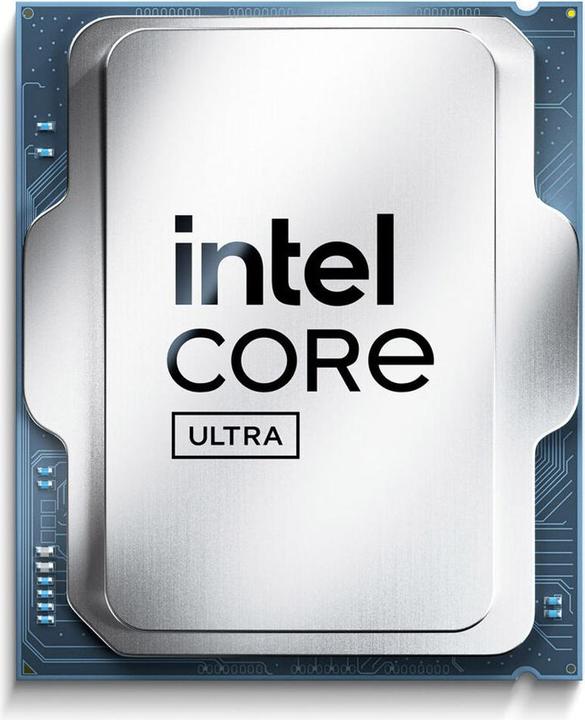

Actual product image Intel Core Ultra 5 225 (LGA 1851, 3.30 GHz, 10 -Core)

Key specifications

Processor family

Number of processor cores

A multi-core processor (or chip-level multiprocessor, CMP) combines two or more independent cores (normally a CPU) into a single package composed of a single integrated circuit (IC), called a die, or more dies packaged together. A dual-core processor contains two cores, and a quad-core processor contains four cores.

Number of threads

NPU power

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

L3 Cache

Another issue is the fundamental tradeoff between cache latency and hit rate. Larger caches have better hit rates but longer latency. To address this tradeoff, many computers use multiple levels of cache, with small fast caches backed up by larger slower caches.

Multi-level caches generally operate by checking the smallest Level 1 (L1) cache first; if it hits, the processor proceeds at high speed. If the smaller cache misses, the next larger cache (L2) is checked, and so on, before external memory is checked.

As the latency difference between main memory and the fastest cache has become larger, some processors have begun to utilize as many as three levels of on-chip cache.

PCI express version (max.)

Core Ultra 5 225

Processors

CPU coolers

Internal cables (PC)

CPU water coolers

30-day right of return

General information

Processor

Intel Technologies

Graphics processing unit

Memory

Origin

Product standards

Voluntary climate contribution

Package dimensions

The processor operates with a base frequency of 3.3 GHz and a boost frequency of up to 4.9 GHz.

Clock speed up to 4.9 GHz

The NPU featuring Intel AI Boost is designed to specifically accelerate artificial intelligence applications.

Integrated NPU for AI

The processor enables the use of modern DDR5 memory with a capacity of up to 192 GB.
