InLine USB PD power supply unit

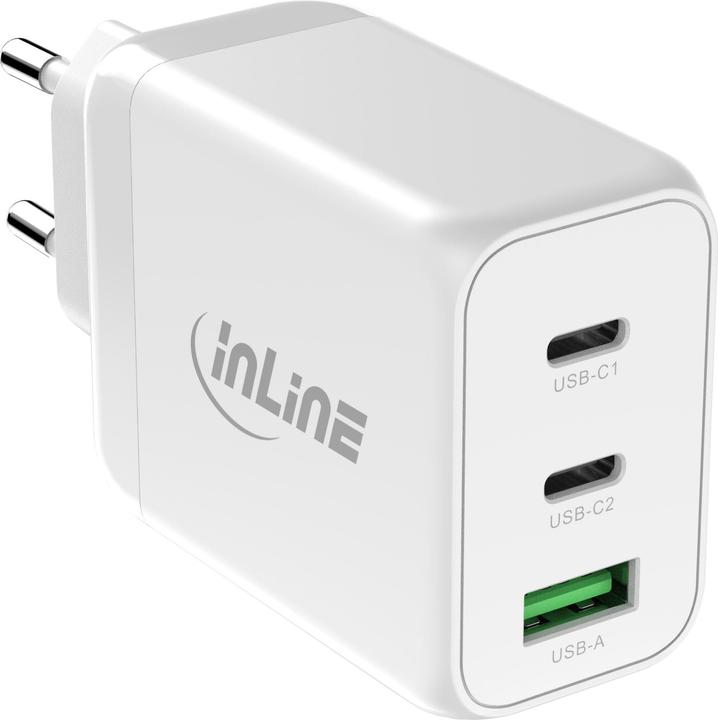

Experience the powerful and compact 65W GaN charger with 2 USB-C connectors and 1 USB-A connector, the perfect solution for fast and efficient charging of multiple devices simultaneously. Thanks to GaN (gallium nitride) technology, this power supply is highly efficient and enables better performance in a smaller form factor. Electrons are conducted up to 1,000 times more efficiently than conventional silicon semiconductors, resulting in less heat generation and energy loss. The 65W GaN charger also supports Power Delivery 3.0 and Quick Charge 4+, offering multiple output options.

• Input voltage: AC 100-240V
• Input AC frequency: 50/60 Hz, 1.5 A
• Output voltage: 3.3-20.0 V DC
• Output current: max. 5.0 A
• Output power: 65.0 W
• Average efficiency in operation: 86.67%
• Efficiency at low load (10%): 76.64%
• Power consumption at no load: 0.27 W
• USB-C1/C2 output: 3.3-11.0V / 3.0A or 5.0V/3.0A or 9.0V/3.0A or 12.0V/3.0A or 15.0V/3.0A or 20.0V/3.25A (65.0W max)
• USB-A output: 4.5V/5.0A or 5.0V/4.5A or 9.0V/3.0A or 12.0V/2.5A or 20.0V/1.5A (30.0W max)
• USB-C1 + USB-C2 output: 45.0W + 18.0W (63.0W max)
• USB-C1 + USB-A output: 45.0W + 18.0W (63.0W max)
• USB-C2 + USB-A output: 5.0V/3.0A (15.0W max)
• USB-C1 + USB-C2 + USB-A output: 45.0W + 5.0V/3.0A
• USB PD 3.0 compatible, Quick Charge 4+ and backwards compatible
• Dimensions: 95.7 x 47.2 x 29.4 mm.
