InLine KVM Switch

The InLine® 63614I KVM switch allows you to control two computers with USB Type-C interfaces from a single console featuring a DisplayPort monitor, USB mouse and keyboard, as well as audio, including two sets of fixed KVM cables (2x USB Type-C/audio/microphone combo cables). The console connection provides instant switching capabilities and includes a wired Quick-Switch button – a simple press of the button switches to the other computer.

The two USB 2.0 keyboard and mouse ports are USB hub ports that offer full extended keyboard/mouse functionality. Additionally, other high-speed USB devices such as USB hard drives can also be connected.

• 1x wired QuickSwitch button for instant switching at the push of a button (1.5 m)

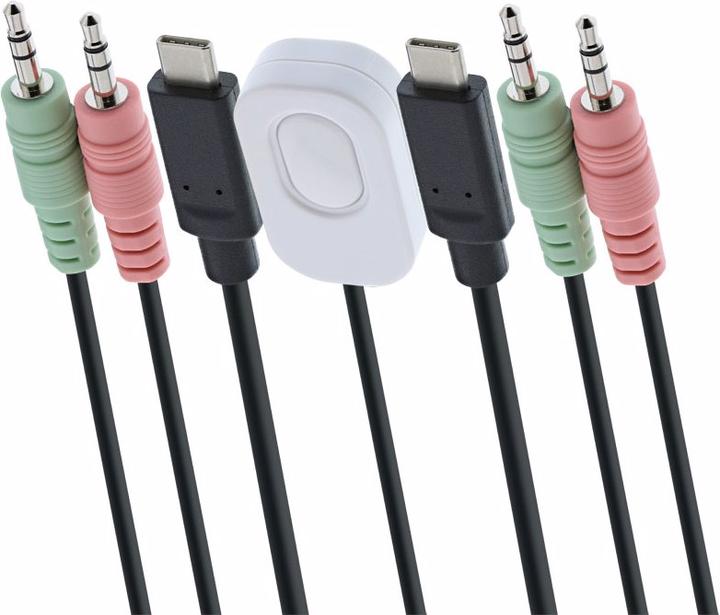

• 2 integrated 1.2 m KVM cables, video/audio/microphone combo cables with USB-C

• PC connection (video interface and USB): PC1: USB Type-C / PC2: USB Type-C

• Console connection video interface: DisplayPort socket

• Console port KM interface: 2x USB Type-A sockets for keyboard and mouse

• 3.5 mm audio ports for audio (speakers and microphone)

• Supports screen resolution up to 3840 x 2160 / 4K @60Hz

• Video interface DP1.2 compatible

• USB 2.0 hub ports for keyboard, mouse, or other high-speed USB devices

• Independent/simultaneous switching of PC and audio channel

• Customizable hotkeys and universal hotkey for computer switching

• USB bus powered, no power supply required

Note: Computers connected via USB-C must support USB-C DisplayPort Alternate Mode for operation.
