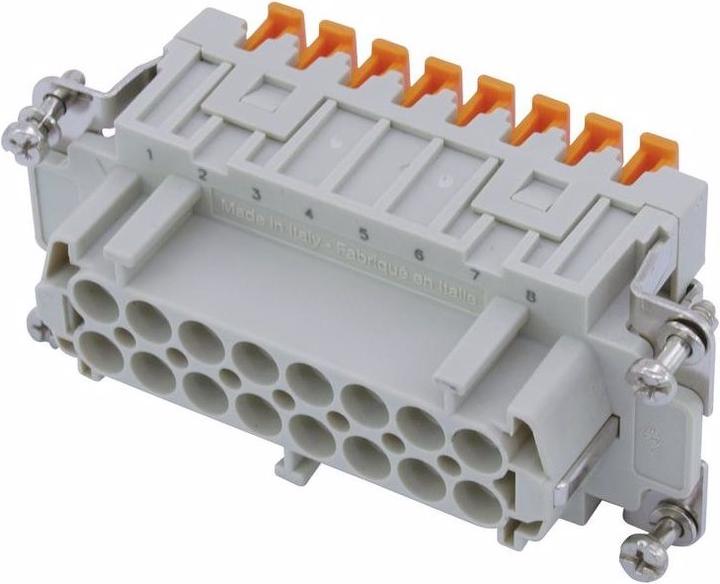

ILME SQUICH socket insert 16-pin 16A 500V

Ilme Socket Insert CSHF 16

Manufacturer: Ilme
Description: Socket insert 16-pole, 16A/500V
Type: CSHF 16
Contact insert without contacts: no
Contact design: Socket
Number of poles: 16
Material of connector insert: Thermoplastic
Rated current In: 16 A
Ambient temperature: -40 to 125 °C
Rated voltage: 500 V
Rated impulse voltage: 6 kV
Degree of pollution: 3
Design of electrical connection: Spring clamp connection
Connectable conductor cross-section fine-stranded without ferrule: 0.14 to 2.5 mm²
Material of contact coating: Silver
Flammability class of insulation material according to UL 94: V0
With protective conductor: yes

Ilme Socket Insert CSHF 16: additional details
The ILME article number CSHF 16 defines the item socket insert, size 77.27, 16P+PE, silver, SQUICH, 16A, 500V. The contact insert of the CSH series is equipped with the patented ILME quick connection technology SQUICH®. This connection technology offers an intuitive and fast connection of the connector. In addition to saving up to 50% time compared to traditional screw connection technology, the cage spring contacts of the SQUICH® technology are completely vibration-resistant and maintenance-free, making them suitable for applications in the EN 61373 area. The additional test opening of the connection buttons allows the user to measure and test in the connected and installed state of the connector. Identical specifications and contours to the series CNE, CCE, CSE, and CSS enable a wide range of applications for this contact insert.
