ifm Electronic IFM optical distance sensor

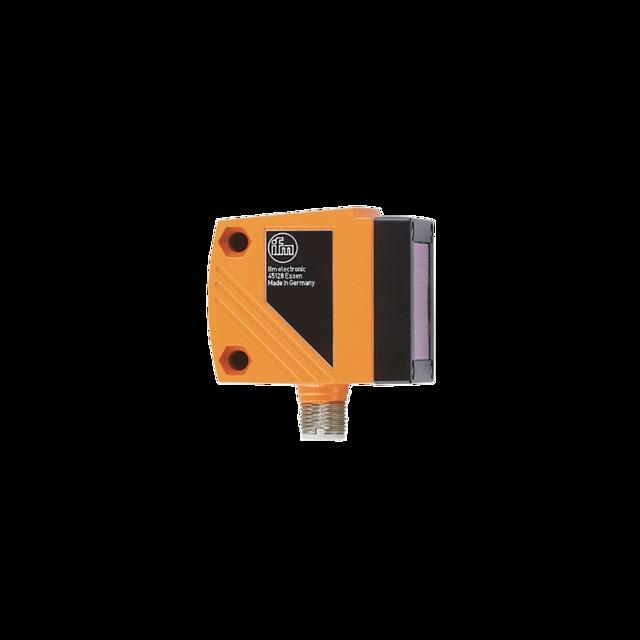

Ifm Electronic distance sensor optical O1D101

Manufacturer: Ifm Electronic
Designation: Distance sensor optical DC PNP S/Ö
Type: O1D101
Scanning principle: Other
Analogue output version: 4 mA ... 20 mA
Type of electrical connection: M12 plug connector
Type of switching output: PNP
Type of switching function: NO contact (NO)
Supply voltage: 18...30 V
Width of sensor: 42 mm
Height of sensor: 59 mm
Length of sensor: 45 mm
Setting method: Parameterisation
Explosion protection category for gas: None
Explosion protection category for dust: None
Housing design: Block
Laser protection class: Class 2
Type of light: Laser diode, red light
Light spot: 28.274 mm²
Max. output current: 200 mA
Measuring range length: 200..10000 mm
Switching frequency: 5 Hz
Protection class (IP): IP65
Voltage type: DC
Ambient temperature: -10...60 °C
Material of optical surface: Glass
Material of housing: Zinc
With time function: No

Ifm Electronic optical distance sensor O1D101: more details
Optical sensors, Optical distance sensor, Scanning range 10 mm, DC PNP, Operating voltage: 10...30 V DC, Current consumption: 150 mA, Normally open / Normally closed programmable, Plug connection, M12 plug connection, Background suppression, Visible laser light, Laser protection class 2, 4-digit alphanumeric display, Housing material: Housing: Die-cast zinc Front panel: Glass LED window: Polycarbonate.
