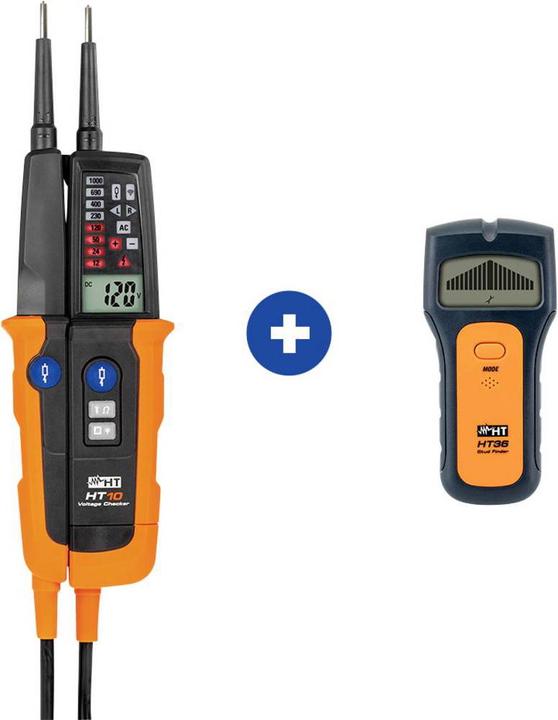

HT Instruments Bipolar voltage tester Action package HT10 & HT36 Wall scanner

It meets the protection class IP64 (dust and splash-proof) and is extremely robust due to the molded soft rubber grips, making it ideal for the toughest applications in the craft or industrial sector. The permanently attached probe cover eliminates the risk of injury when carried in clothing pockets or tool bags. The independent ELV display LED indicates whether a voltage greater than 50V AC / 120V is present, even when there is no battery power supply or a failure of the main power circuit.

Specifications:

• DC and AC voltage up to 1000 V AC/DC
• Bar graph with 12 / 24 / 50 / 120 / 230 / 400 / 690 / 1000 V
• Voltage measurement with low internal resistance
• Single-pole phase testing
• Polarity indication
• Rotating field direction detection
• Resistance measurement 0Ω ÷ 1999Ω
• Optical & acoustic continuity testing 0Ω ÷ 400kΩ
• Fixed impedance ~ 350kΩ (less than 3.5 mA at 1000 V)
• Measurement value storage (Data HOLD)
• Automatic shutdown
• Button for load switching (RCD tripping 30mA)
• Large LCD display with backlight
• Measurement point illumination with white LED
• 19 mm contact distance for one-handed testing
• Safety according to CAT III 1000 V, CAT IV 600 V
• TÜV/GS certified

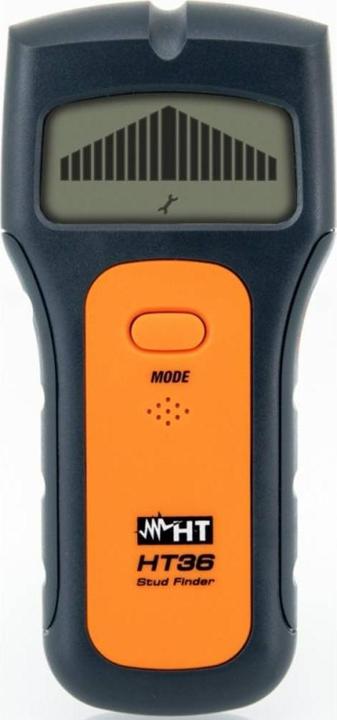

With the HT36, ferrous and non-ferrous metals, as well as wood or live wires, can be detected. The practical bar display allows for quick and accurate location in seconds. The indication is both acoustic and visual via a high-contrast LCD display. The HT36 detects metal, wood, and live wires in the wall.
