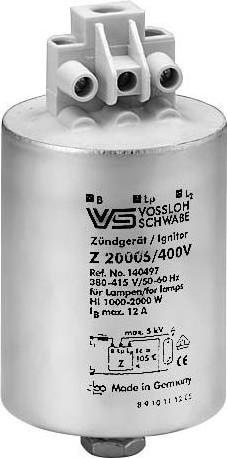

Houben Superimposed ignition device

Houben Overlay Igniter 140497
Manufacturer: Houben
Designation: Overlay Igniter 1000-2000W 400V
Type: 140497
Electronic: Yes
Suitable for high pressure sodium lamp: No
Suitable for compact fluorescent lamp: No
Suitable for metal halide lamp: Yes
Suitable for low-pressure sodium lamp: No
Suitable for fluorescent lamp: No
Suitable for lamp wattage: 1000-2000 W

Houben superimposed ignitor 140497: more details
Electronic superimposed ignitors for metal halide lamps (HI) up to 2000 W
Nominal voltage: 380-415 V
Nominal frequency: 50-60 Hz
Ignition voltage: 4-5 kV
Phase position of ignition pulse: 60-90 °el and 240-270 °el
Max. lamp current: 12 A
Load capacitance: 20-2000 pF
Dissipated power: < 5 W
Internal heating: < 32 K
Max. permitted enclosure temperature: 105 °C
Screw terminals: 0.75-2.5 mm²
Fixing: Threaded bolt with pre-mounted toothed lock washer and nuts
For luminaires of protection class I and II
Weight: 340 g
Type: Z2000S/400V, EAN: 4014364404974.
