Hora eTec BTR 1108551326IP LF-DIO4/2-IP FT5000 4DI

Metz Connect Input Module LF-DIO4/2-IP FT5000

Manufacturer: Metz Connect
Designation: Input module with 4 digital inputs, 2 relay outputs
Type: LF-DIO4/2-IP FT5000

Bus system KNX: no
Bus system KNX-RF: no
Bus system RF bus: no
Bus system LON: yes
Bus system Powernet: no
Other bus systems: none
Remote control possible: no
Ethernet: no
Mounting type: surface-mounted
With bus coupling: yes
LED control: yes
With LED display: no
Local/manual operation: no
Number of inputs: 4
Suitable for C-load: no
Max. number of switching outputs: 2
Switching function: yes
Rated operating voltage: 24 V
Different phases connectable: no
Protection class (IP): IP65

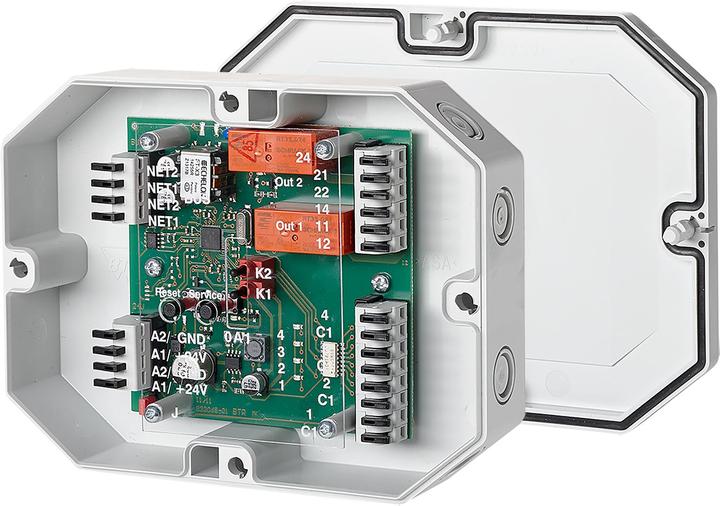

The LON module in an IP65 housing with 4 digital inputs and 2 relay outputs has been designed for decentralized switching tasks. It is suitable, for example, to integrate light switches and window contacts in a room and to control two light strips or for blind control. Additionally, it can control 2 motor-operated fire dampers. The relay contacts must be protected by appropriate load-dependent measures. The inputs can be operated either as contact or voltage inputs. The inputs and outputs can be switched or queried via network variables SNVT. The outputs have a manual operation level that is only activated in the configured mode. Additionally, an adjustable wiping function is integrated.

EAN: 4250184135777.
