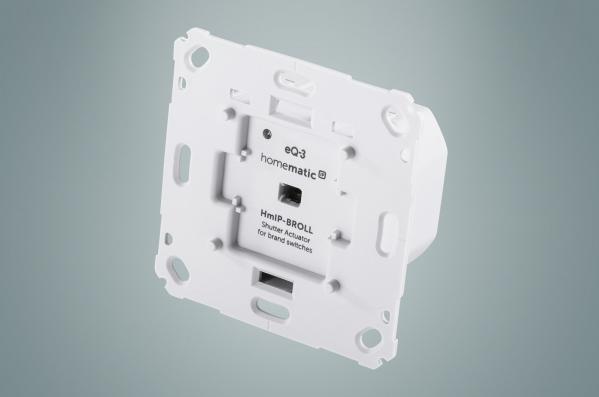

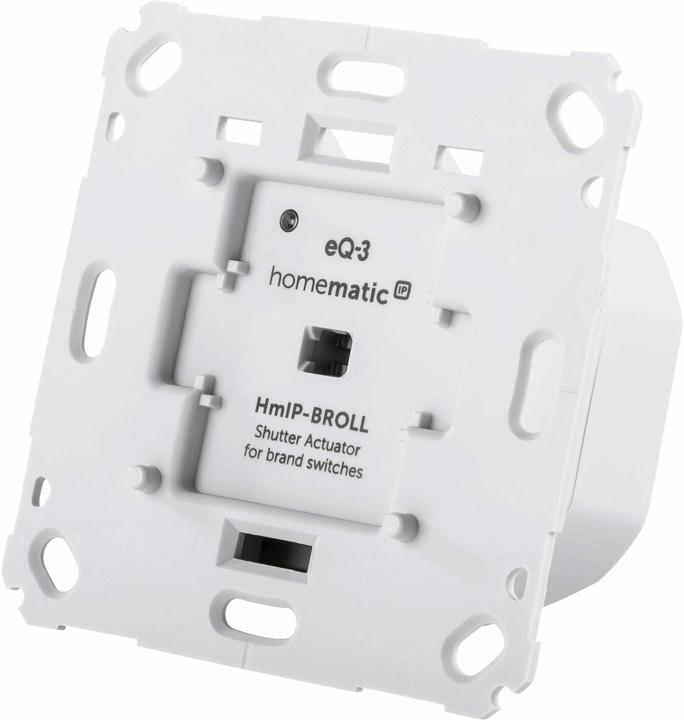

Homematic IP Roller shutter actuator for brand switches
Shutter actuatorDelivered between Tue, 16.6. and Wed, 17.6.
Only 2 pieces in stock at supplier
Only 2 pieces in stock at supplier
free shipping
Number2
Product details

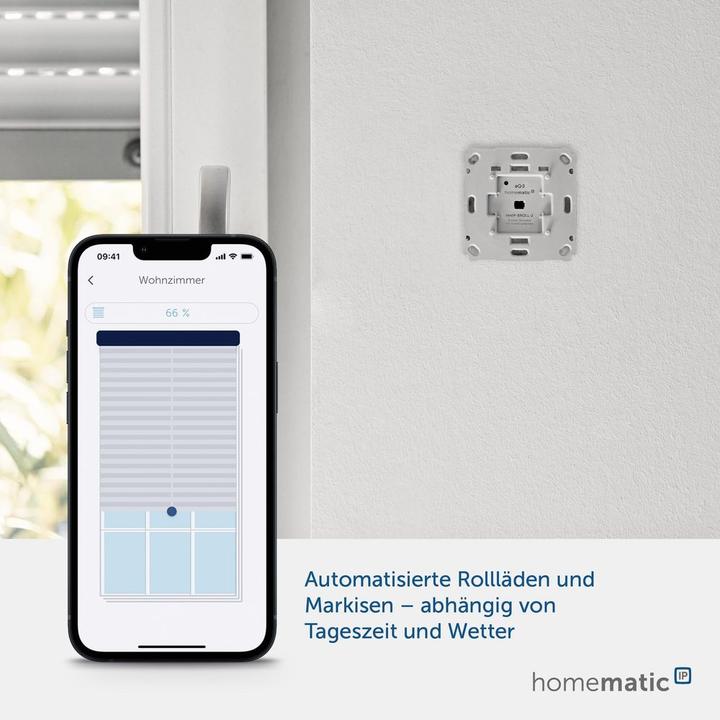

The control is done via the Homematic IP app, through the Homematic IP remote control, or directly using the switch's push button. It is also possible to pair the roller shutter actuator with the Homematic central unit CCU2 and control it from there. Individual weekly profiles can be configured on the access point, allowing for a timed raising and lowering of the roller shutters and awnings. Additionally, the control can also be based on sunrise and sunset.
Actuator type | Shutter actuator |
Nominal voltage | 230 V |
Mounting type | Flush-mounted |
communicating | Wireless |
Items per sales unit | 1x |
Item number | 6392900 |
Manufacturer | Homematic IP |
Category | Actuator |
Manufacturer No. | HmIP-BROLL |
Release date | 12.4.2017 |
Sales rank in Category Actuator | 60 of 1435 |
Colour | Grey, White |
Exact colour description | Grey, White |
Actuator type | Shutter actuator |
Max. Switching capacity | 500 W |
rated current | 2.20 A |
Nominal voltage | 230 V |
Number of switching outputs | 2x |
Mounting type | Flush-mounted |
Protection type (IP code) | IP20 |
Smart home | Compatible |
communicating | Wireless |
Radio frequency | 868300000 Hz |
Requires Smart Home Hub | Yes |
Country of origin | China |
CO₂ emissions | 1.13 kg |
Climate contribution | CHF 0.11 |
Items per sales unit | 1x |

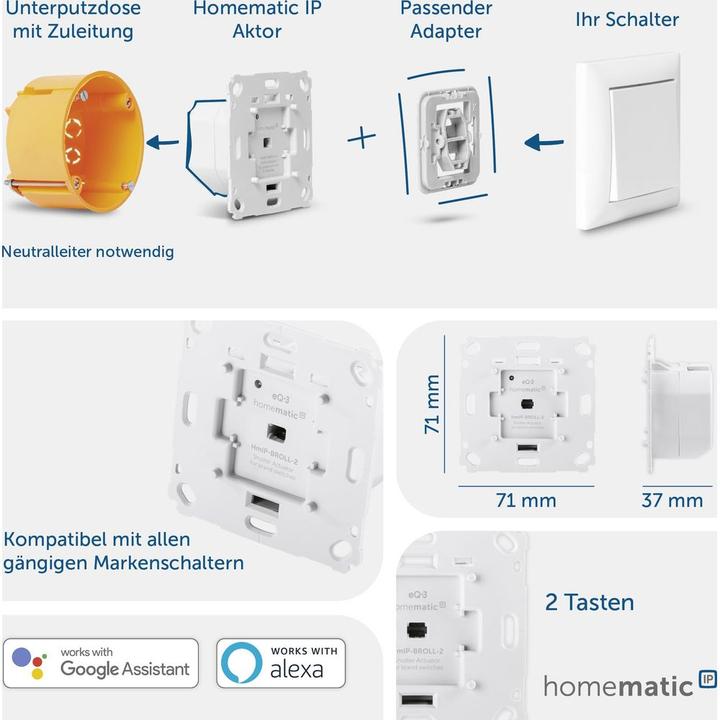

Length | 37 mm |
Width | 71 mm |
Height | 71 mm |
Weight | 200 g |
Length | 12.50 cm |
Width | 11.50 cm |
Height | 5 cm |
Weight | 134 g |
Specifications may include unverified machine translations.
