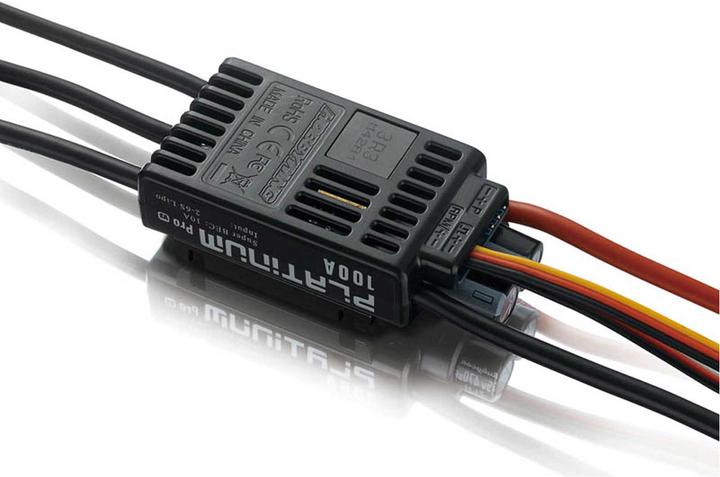

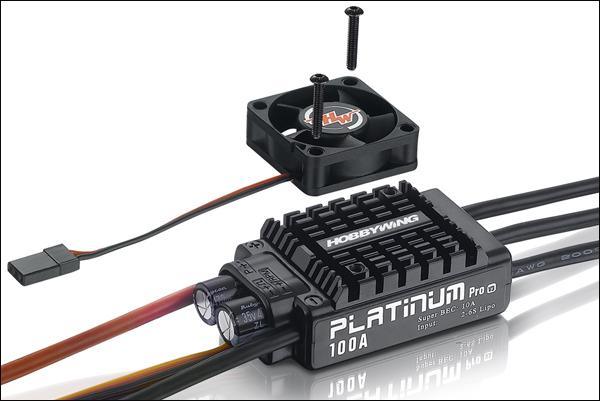

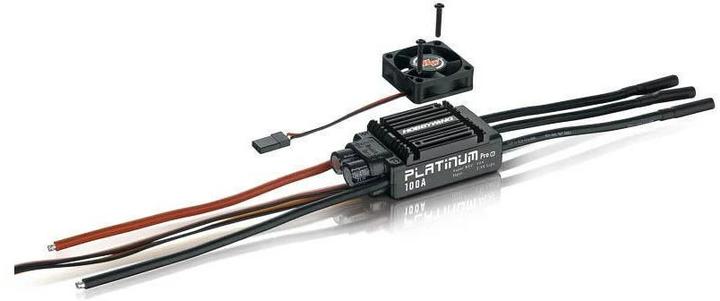

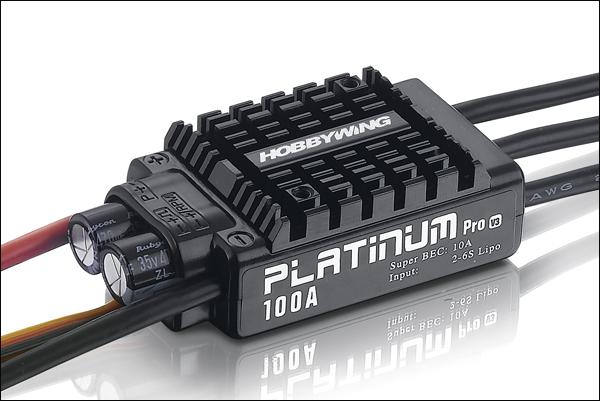

Hobbywing Platinum Pro 100A

Brushless controller for 480-550 3D helicopters and 70 airplanes. High-performance microprocessor for excellent compatibility with most motors. Various flight modes: airplanes, helicopter governor "Off" / "Elf" / "Store". Powerful switch mode BEC with 10 A output power. Maximum RPM can reach up to 210,000 RPM (for 2 poles), 70,000 RPM (for 6 poles), and 35,000 RPM (for 12 poles) motors. BEC: integrated, voltage: 6 V / 7.4 V / 8.4 V, maximum current: 10 A. Dimensions: 70 mm x 35 mm x 21 mm, weight: 104 g. Additional features: Adjustable throttle range for compatibility with most transmitters, providing smooth, linear throttle response with very fast transmission. The microprocessor is powered by an independent DC regulator, reducing susceptibility to interference. The new governor program offers excellent speed control. "Restart in Auto-Rotation" can manually interrupt automatic rotation to quickly restart the motor, thus preventing accidents due to operator error. Independent output for motor RPM signal. Compatible with the LCD program box for easy visual programming of parameters. Firmware can be updated via the program box and its USB port using a PC. Real-time and log data reading is possible. Input voltage monitoring, undervoltage protection, and signal loss protection.
