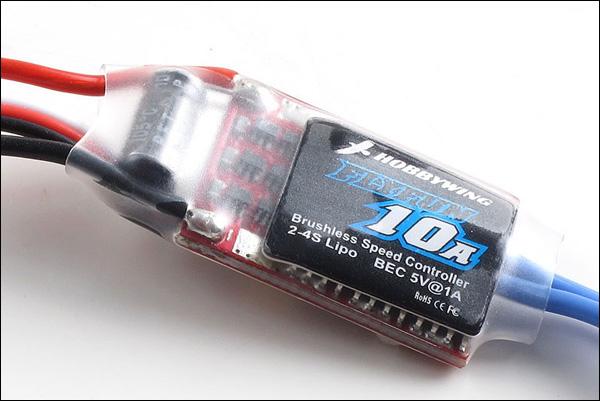

Hobbywing FlyFun 10A

The FlyFun series is a universal series of speed controllers that covers an extremely wide range, with controllers from 6A to 100A. This series can be used for both airplanes and helicopters. The SkyWalker controllers are recommended for both advanced and experienced pilots and will provide you with a lot of enjoyment.

Features:

• Safety feature at startup: No matter where the throttle stick is positioned, the motor will not start spinning when the battery is connected.
• Throttle calibration function: The throttle range can be calibrated to be 100% compatible with various transmitters.
• Various programming options are available, such as using the transmitter stick or the LED program card. This allows for easy programming of the controller anywhere.
• Compatible with LiPo and NiMH batteries.
• The timing can be adjusted to be compatible with various brushless motors.
• Complete protection mechanisms such as low voltage cutoff, overheating protection, and signal loss protection.

Technical specifications:

• Continuous current: 10A
• Peak current: 12A for up to 10 seconds.
• Input voltage: 2-4S LiPo, 5-12 cells NiMH.
• BEC: 1A / 5V linear mode BEC.
• Throttle signal repetition rate: 50Hz to 432Hz.
• Max speed: 210,000 RPM for 2-pole brushless motors, 70,000 RPM for 6-pole brushless motors, 35,000 RPM for 12-pole brushless motors.

Dimensions: 38mm x 18mm x 6mm
Weight: 9.4g

Main application area:

• 300 class fixed-wing aircraft / sport airplanes.
