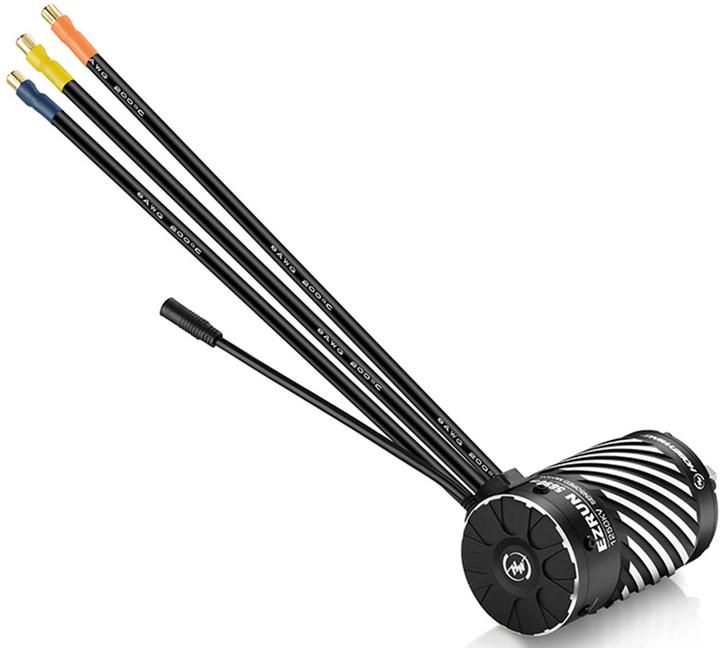

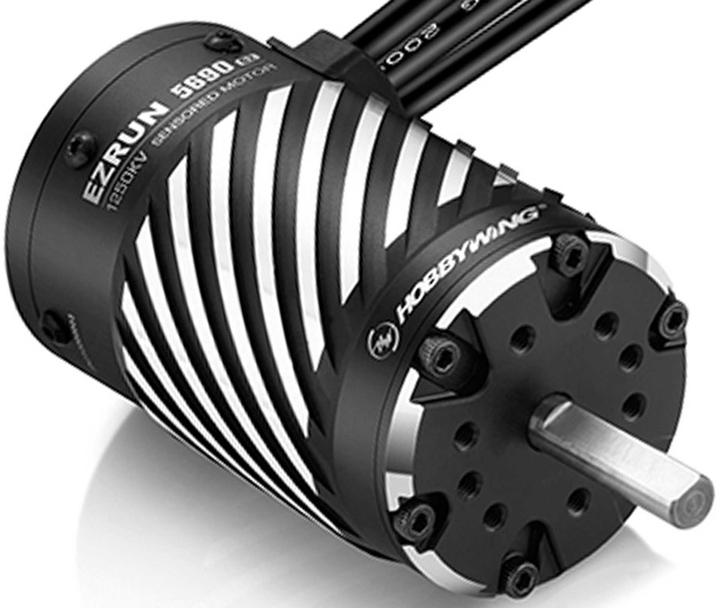

Hobbywing Ezrun 5690SD G2 1250kV 4pol, 8mm shaft for 1:6

With the EzRun 5690 SD G2 motor, Hobbywing aims to set new standards. The elegant and appealing design combines with unconventional dimensions and a new sensor cable. The power of this 8S sensor-controlled motor, made from high-strength CNC aluminum and a durable rotor, should not be underestimated, as it is known for its dynamism and dominance. With a linear feel even at low speeds, a wide range of maneuvers can be executed smoothly.

The EzRun 5690 SD G2 also shows no weaknesses in its connections. For those who cannot use the 6.5 mm connectors, additional 8 mm adapters are included, allowing the motor to fit, for example, with the Max5 G2 controller. The sensor cable is designed to be waterproof and secure when used correctly. Although the entire motor provides protection against water and dust according to the IP67 standard, accidents can always happen. In such cases, the purely modular design of the motor allows for quick and easy maintenance.

Features:

• Sensor-controlled system with improved acceleration linearity and more power
• Ideal as a complement to the EzRun Max6 or Max5 controller for a fully sensor-controlled experience
• The independent high-precision encoder effectively prevents interference from sensor signals
• Waterproof and dustproof according to IP67 standard
• Easily disassembled for maintenance

Technical specifications:
Type: Brushless Sensored
KV Rating: 1250 kV
No-load current: 6.6 A
LiPo cell count: 3-8S
Number of poles: 4
Diameter: 56 mm
Length: 90.2 mm
Shaft diameter: 8 mm
Shaft length: 30 mm
Weight: 867 g
Application: 1/6 Short Course Truck, Truck, 1/5 Light Duty Truck.
