Hobbywing Brushless drive set Quicrun Fusion Mini16, 3000 kV 2-3S
Only 4 items in stock at third-party supplier
Product details

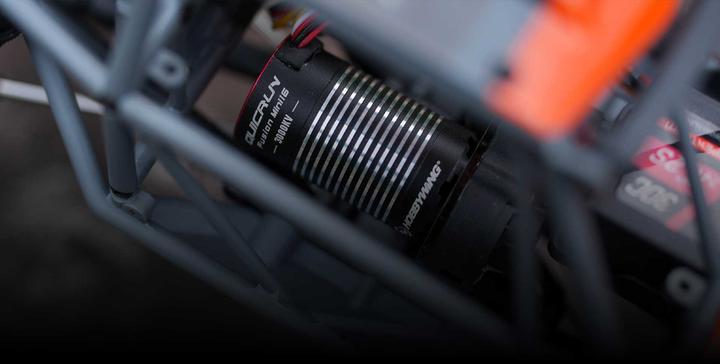

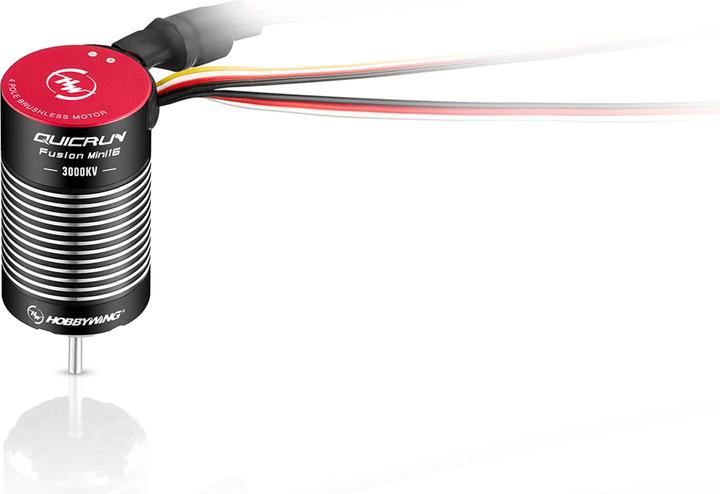

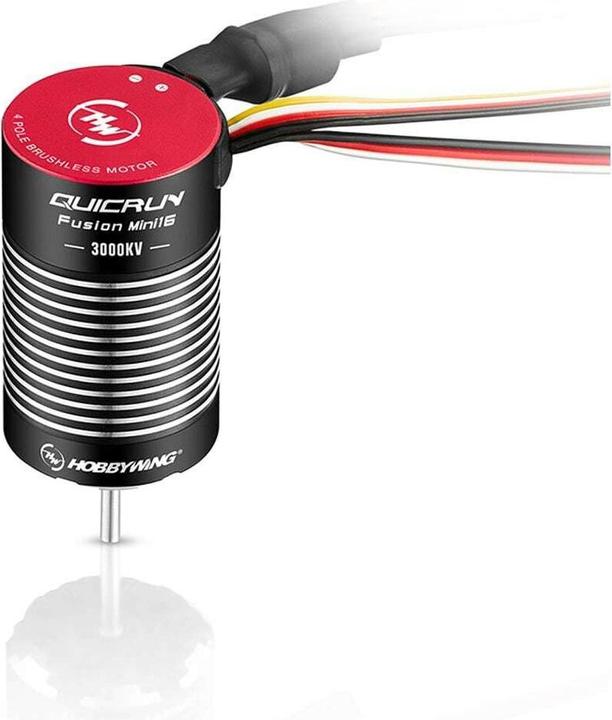

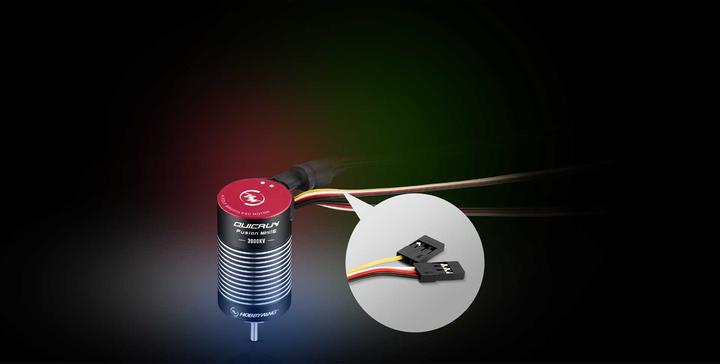

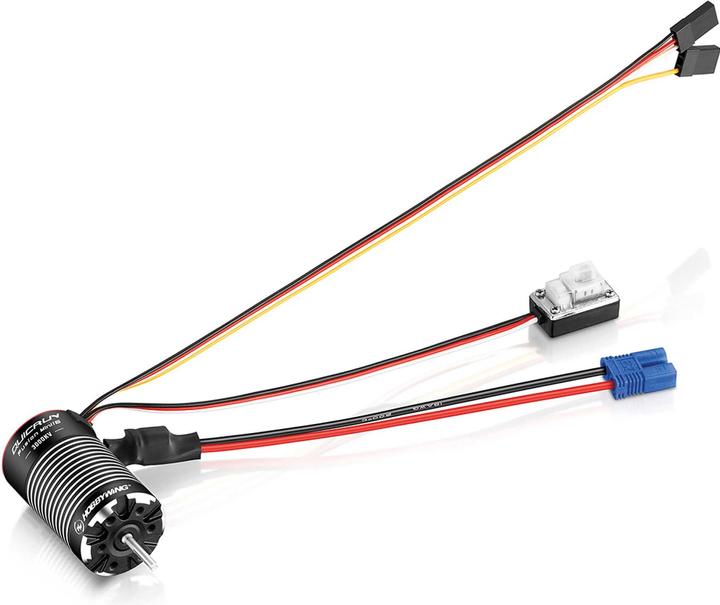

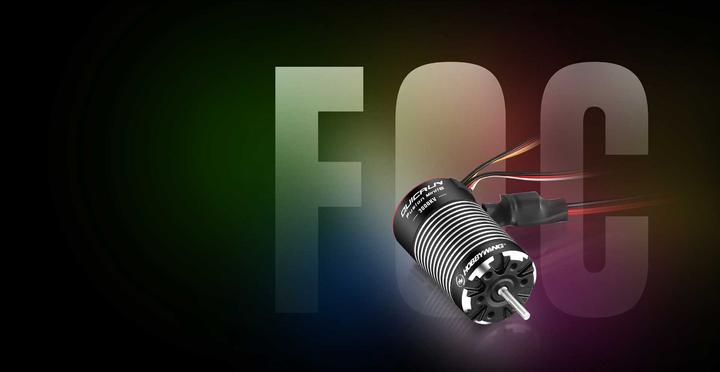

Brushless FOC sensored drive set for 1:16 scale crawlers. Combines a 2-in-1 motor and controller in one unit. Powerful torque even at low speeds. Strong built-in BEC with voltage switching function. FOC drive, ideal for crawlers. Programmable with the LED and LCD G2/Pro Box. Suitable for all weather and terrain conditions. The Quicrun Fusion Mini16 is the latest development from the Quicrun Fusion series. Thanks to the integrated controller in the motor, the Quicrun Fusion Mini16, measuring 24 x 42 mm and weighing 72 g, is extremely space-saving and lightweight. Additionally, the combo features the FOC (Field Oriented Control) mode, specifically designed for rock crawling, allowing for strong torque at low speeds. The combo offers very high efficiency, generates less heat, and operates almost silently. At the same time, the Mini16 is protected with an IP66 rating, ensuring excellent water and dust resistance, making it ideal for all outdoor enthusiasts. With the extremely powerful BEC, the system continuously delivers 4 A of power and a maximum current of 10 A. The output voltage is switchable between 6 V and 7.4 V.
Engine type | Electric motor |
stovepipe hat | 4 |
shaft diameters | 2.35 mm |
Max. Speed | 3000 rpm |
Item number | 49839671 |
Manufacturer | Hobbywing |
Category | RC motors |
Manufacturer no. | HW30120403 |
Release date | 1.10.2024 |
Engine type | Electric motor |
RC Electric motor type | Brushless electric motor |
Motor version | Car motor |
stovepipe hat | 4 |
rpm Volt | 3000 CT |
shaft diameters | 2.35 mm |
Max. Speed | 3000 rpm |
Speed controller type | Brushless |
continuous current | 3000 |
Max. | 3000 |
usableness | Motor |
CO₂-Emission | |
Climate contribution |
Length | 4.20 cm |
Width | 3.70 cm |
Height | 11 cm |
Diameter | 24 mm |
Weight | 72 g |
