Hepf Temperature sensor ID for Ibex Controller

Temperature sensor for IBEX Brushless Controller

Programmable temperature sensor for IBEX Controller.

Temperature range -10 to +125°C

Application 1

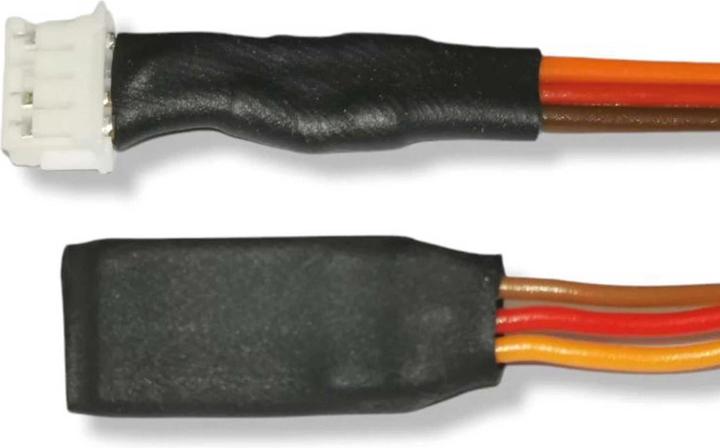

HT125ID is a small temperature sensor that supports several telemetry protocols.
It can be used to measure the temperature of the electric motor, batteries or other components of your model.

Features:

• Small dimensions

• the sensor connects directly to the telemetry port of the receiver

• Temperature min/max values are recorded

• Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2

• Configurable high temperature alarms

• Configuration via transmitter

• Firmware updates.

Configurable telemetry slots in S.Bus2 telemetry mode.
Use MAV Manager software to change.
After changing the slot, select the sensor type "T125" the
corresponding slot in your Futaba transmitter
Application 2
The HT 125ID temperature sensor is compatible with the IBEX controller series

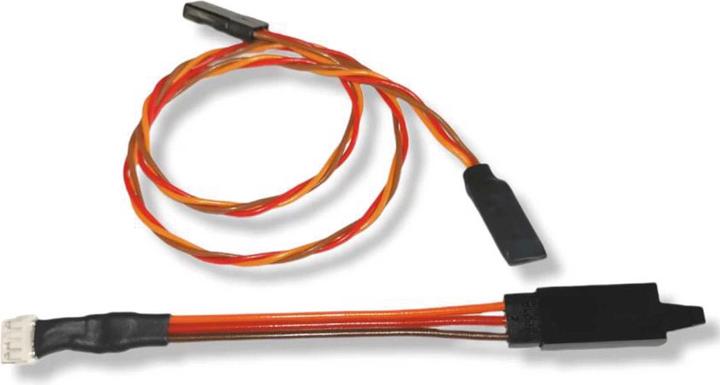

The sensor is connected directly to input "A" of the IBEX controller. (see picture above). From this moment on, the IBEX controller knows the basic motor parameters (minimum acceleration, recommended timing, gear ratio, number of poles...) and the motor temperature. Some parameters are automatically adjusted (gear ratio, poles), the other settings are configured after resetting the actuator to factory settings.

Some motor brands (e.g. Hemotec) have this HT125ID temperature sensor built in. These transmit the most important parameters to the IBEX controller, and thus protect the drive train from overload or destruction - also with the temperature monitoring.

The HT125ID is programmed via a Jeti Box, Smart Box or via the Jetibox Emulation.

HT125ID.
