Hensel HEN Mi 9201 Mi empty housing installation dimensions 275x275x146mm

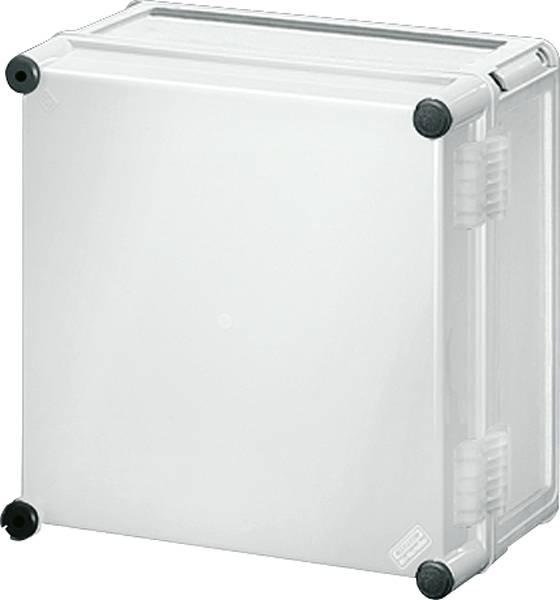

Hensel Mi-Empty Enclosure Mi 9201

Manufacturer: Hensel
Designation: Mi-Empty Enclosure
Dimensions: 275 x 275 x 146 mm
Type: Mi 9201
Mounting Type: Surface-mounted
Type of Cover: Lid
Cover Design: Closed
Type of Door: None
Transparent Lid/Door: No
With Lock: No
Height: 300 mm
Width: 300 mm
Depth: 170 mm
Installation Depth: 146 mm
Internal Depth: 146 mm
Material Thickness of Enclosure: 3 mm
Material Thickness of Door/Lid: 3 mm
RAL Number: 7035
Number of Modules: 1
Number of Rows: 1
Number of Openings for Flange Plates: 3
Mounting Option: No
Number of Cable Entries: 27
Material of Enclosure: Plastic
Surface Protection: Untreated
With Mounting Plate: No
Suitable for Outdoor Use: Yes
Suitable for Lightning Protection: No
Protection Class (IP): IP65
Protection Class: II
Impact Resistance: IK08
Function Maintenance: None

The Hensel Mi-Empty Enclosure Mi 9201 is an enclosure for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. It is made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings allow for the electrical connection of the enclosures to each other. Cable entries are provided on all enclosure walls through metric pre-formed openings or mounting flanges. The enclosure can also be mounted to the wall using external tabs or mounting rails. It is an empty enclosure with a hinged, non-transparent lid. The installation dimensions are W 275 x H 275 x D 150 mm for the installation of devices on a mounting plate or DIN rail. The maximum installation depth with the mounting plate installed is 146 mm, and with the mounting rail installed, it is 135 mm. Lid locks are equipped with tool actuation.
