Hensel ENYSTAR empty housing

Hensel ENYSTAR Empty Enclosure FP 0241

Manufacturer: Hensel
Designation: ENYSTAR Empty Enclosure
Dimensions: 216 x 306 x 136 mm
Type: FP 0241
Mounting Type: Surface-mounted
Cover Type: Door
Cover Design: Closed
Door Type: Single
Transparent Cover/Door: Yes
With Lock: No

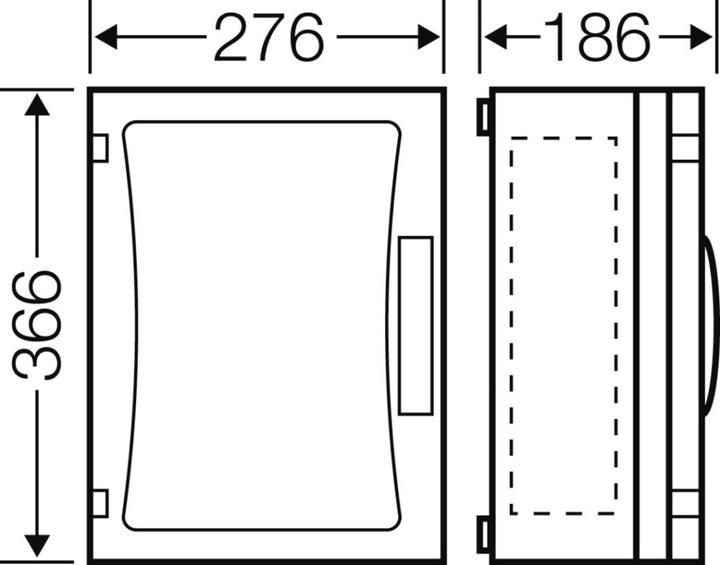

Height: 366 mm
Width: 276 mm
Depth: 186 mm
Installation Depth: 136 mm
Inner Depth: 136 mm
Material Thickness of Enclosure: 3 mm
Material Thickness of Door/Cover: 3 mm
RAL Number: 7035
Number of Modules: 1
Number of Rows: 1
Number of Openings for Flange Plates: 4
Mounting Option: Yes
Material of Enclosure: Plastic
With Mounting Plate: No
Suitable for Outdoor Use: Yes
Suitable for Lightning Protection: No
Protection Class (IP): IP66
Protection Class: II
Impact Resistance: IK08
Function Maintenance: None

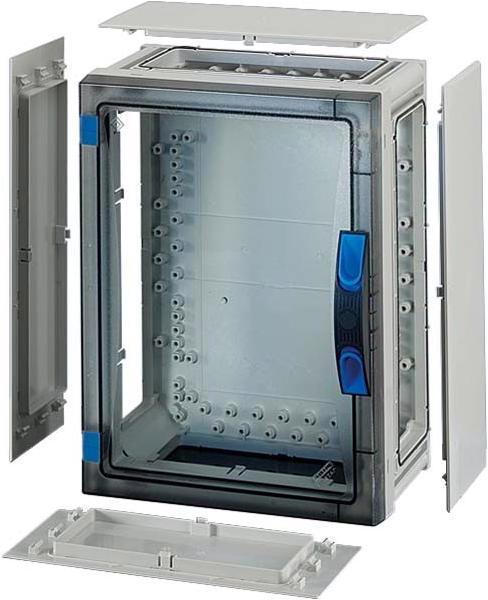

The enclosure with door is suitable for constructing installation distribution boards up to 250 A and allows operation by non-professionals according to IEC 61439-3. It features open enclosure walls for combination or as a standalone enclosure with closure plates. Made from high-quality polycarbonate, it is protection-insulated. The enclosure connection is quickly established through connectors and integrated seals. Large wall penetrations allow for the electrical connection of enclosures to each other. Cable entry is via flanges. Wall mounting can be done directly on the enclosure, via external tabs, or with mounting rails. The empty enclosure has a transparent door and a sealable door lock with manual operation, as well as a closure plate set. It is suitable for the installation of devices on a mounting plate or DIN rail with installation dimensions of W 216 x H 306 x D 140 mm. The maximum installation depth with an installed mounting plate is 136 mm, and with an installed rail, it is 125 mm.
