Heltec Automation Capsule Sensor V3 LoRa mit GNSS 863-870MHz

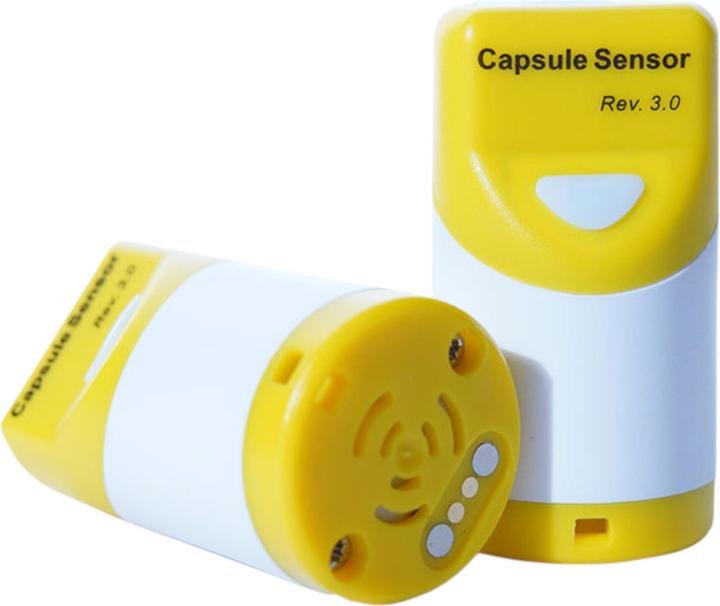

The Heltec Capsule Sensor V3 is a compact and powerful LoRa/LoRaWAN sensor based on the ESP32-S3 and SX1262 chip. Its modular design allows for flexible expansion with various sensors, making it suitable for numerous IoT applications. The sensor is IP65 waterproof, making it ideal for use in demanding environments. With WirelessBoot technology, firmware updates can be conveniently performed over Wi-Fi without the need for a USB interface. The integrated GNSS functionality enables precise positioning, while the built-in 250mAh battery with magnetic charging technology ensures long operating times. In addition to LoRa, the device also supports Wi-Fi and Bluetooth, providing versatile communication options. The Capsule Sensor V3 is compatible with Meshtastic and can be used for asset tracking, environmental monitoring, education, and LoRa-based networks.

Technical Specifications:
Manufacturer: Heltec Automation
Microcontroller: ESP32-S3FN8
LoRa Chip: SX1262
Frequency Ranges: 863-870MHz
Wi-Fi: IEEE 802.11 b/g/n (2.4GHz)
Bluetooth: Bluetooth 5, Bluetooth Mesh, Bluetooth LE
Max. LoRa TX Power: 21±1dBm
LoRa Sensitivity: up to -135dBm
Battery Capacity: 250mAh (rechargeable)
Charging Port: Magnetic 2P-2.54mm connector, 5V
Operating Time: Over 6 months (under optimized conditions)
Operating Temperature: -20°C to 60°C
Humidity: 10% - 90% (non-condensing)
Protection Class: IP65
Maximum Range: over 6 km (under ideal conditions)
GNSS GPS Sensor: Quectel L76K (<1m accuracy)
Dimensions: 47 x 26 x 26mm
Weight: 38g

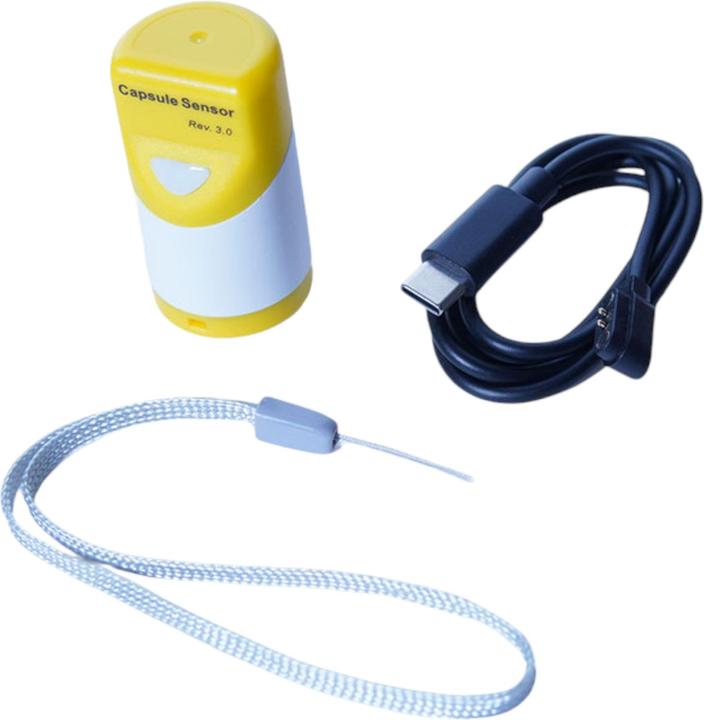

Included in the package:
1x Heltec Capsule Sensor V3 LoRa with GNSS 863-870MHz
1x Magnetic charging cable
1x Carrying strap.
