Hardkernel Odroid N2+

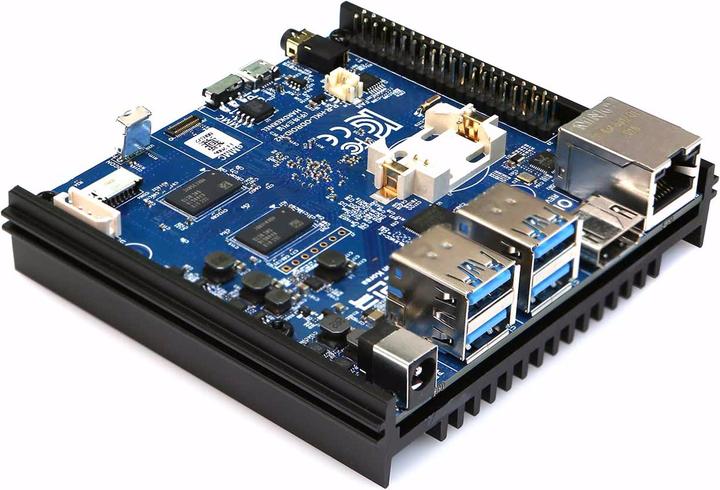

Odroid-N2+ is a next-generation single-board computer that is more powerful, stable, and faster than the N1. The main processor of the N2+ is based on the big.Little architecture, which integrates a quad-core ARM Cortex-A73 processor cluster and a dual-core Cortex-A53 cluster with a next-generation Mali-G52 graphics processor. Thanks to modern 12nm silicon technology, the A73 cores operate at 1.8 GHz without thermal throttling due to the metal-encased heatsink, resulting in a robust and quiet machine. The performance of the multi-core processor is about 20% faster, and that of the graphics processor is 10% faster than the N1. The DDR4 RAM of the N2+ operates at 1320 MHz with a power consumption of 1.2 volts. The large metal case heatsink is designed to optimize heat dissipation from the processor and RAM while minimizing throttling. The processor is placed on the underside of the circuit board to achieve good thermal properties. Power supply: DC 12V/2A.
