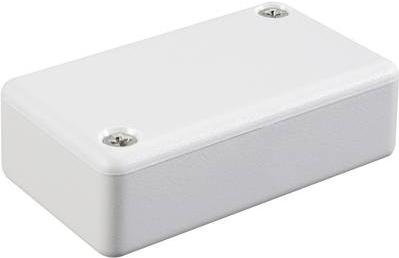

Hammond Mini Handheld Case 35x35x20mm, grey

Housing material: ABS
External dimensions: 35 x 35 x 20 mm
External length: 35 mm
External width: 35 mm
External height: 20 mm
IP protection class: IP54
Color: Gray
With flange: Yes
Series: 1551

The dimensions do not include the lid (add 4 mm for the lid). Miniature plastic enclosure Hammond 1551. The Hammond series 1551 of miniature electronic enclosures for general applications is ideal for mounting printed circuit boards. The enclosures are made of ABS plastic to ensure a long service life. They feature a special design with overlapping joints that meet the IP54 protection class.

Features and benefits:

• Ideal for mounting small printed circuits or for use as a multipurpose enclosure
• ABS plastic with a satin finish
• 2 PCB spacers, injection molded inside the enclosure
• Design with overlapping joints for protection against dust and splash water ingress, IP54

Frequently asked questions:
What does IP mean?
The IP protection class is used to determine the effectiveness of the sealing of electrical enclosures against the ingress of foreign bodies (tools, dirt, etc.) and moisture.

What is included in the delivery?
Enclosure with lid and color-matched screws.
