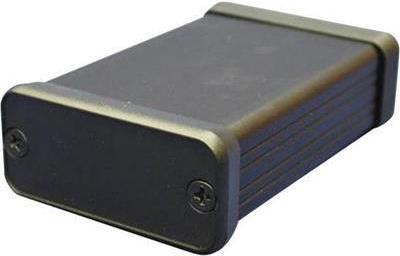

Hammond Extruded aluminium enclosure, black

Enclosure material: Aluminum
External dimensions: 80 x 54 x 23 mm
External length: 80 mm
External width: 54 mm
External height: 23 mm
Color: Black
Cover color: Black
Series: 1455
Number of cutouts: 0

The Hammond 1455 enclosure with metal end plates features an aluminum body and two metal end plates with an integrated mounting frame. These enclosures are designed for housing PC boards or for device connections.

Features and benefits:

• Designed for housing PC boards or for device connections
• Suitable for standard Eurocards
• Horizontal mounting of the circuit boards by sliding them into internal grooves embedded in the enclosure
• Enclosure includes two metal end plates with integrated cover
• Sturdy enclosure made of extruded aluminum with a minimum thickness of 1.5 mm
• Body made of extruded material including removable belly plate, except in smaller sizes (A, B, C, and D)
• Smaller sizes (A and B) are rounded for better ergonomics in hand
• DIN rail clips and flange kits are available separately

Frequently asked questions:
Can this enclosure be used outdoors?
These enclosures are not suitable for outdoor use as they do not have any sealing. Enclosures do not offer IP protection and do not guarantee protection against water and dust. These metal enclosures are intended for indoor use only.

What is included in the delivery?

• 2 aluminum end covers
• 2 black ABS covers
• extruded aluminum enclosure
• 4 self-adhesive rubber feet
• End plate screws.
