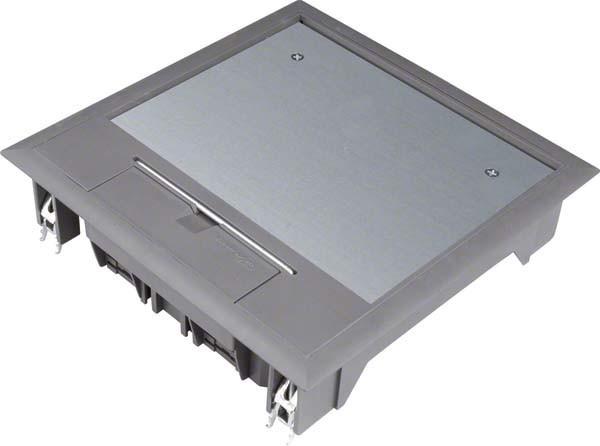

Hager TEH VQ06057011 Supply unit Q06 for 5mm floor covering

Tehalit Supply Unit VQ0605 egr

Manufacturer: Tehalit
Description: Supply unit for universal mounting
Type: VQ0605 egr
Cover design: square
Number of entries: 1
Number of device sockets: 2
Number of Schuko sockets: 6
With cable outlet in the cover: yes
Lockable cover: yes
Material of the housing: plastic
Material of the cover: plastic
Surface protection of the cover: other
Surface treatment of the cover: other
Protection class (IP): IP20
With floor covering cutout: yes
Depth of floor covering cutout: 5 mm
Floor covering protection frame: yes
Color: gray
RAL number: 7011
Suitable for indoor use: yes
Suitable for outdoor use: no
Suitable for underfloor ducts: yes
Suitable for hollow floor installation: yes
Suitable for raised floor installation: yes
Suitable for concrete installation: yes
Suitable for floors in computer rooms: yes
Suitable for wet cleaning: no

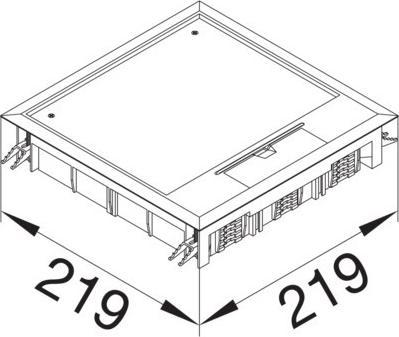

External width: 219 mm
External length: 219 mm
Installation dimensions length: 200 mm
Installation dimensions width: 200 mm
Min. installation depth: 77 mm

Supply unit Q06 200x200mm for 5mm floor covering made of polyamide iron gray. Supply unit according to DIN EN 50085-1 and DIN EN 50085-2-2, including universal mounting set, with floor covering protection frame, device sockets can be lowered stepwise up to 18 mm, with connection option for flat chain.
