Hager ST313 - 230 V - telephone system

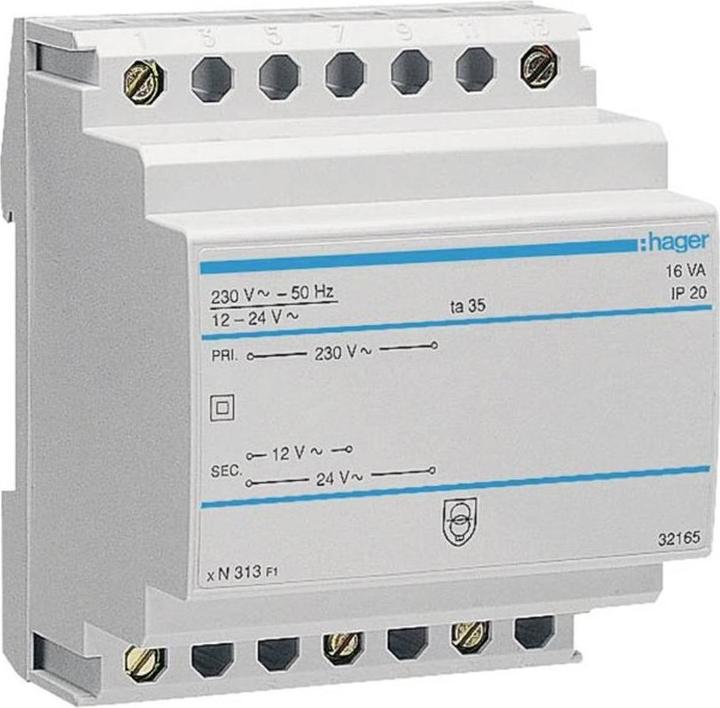

Hager Safety Transformer ST313

Manufacturer: Hager
Designation: Safety Transformer 12V/1.33A and 24V/0.67A
Type: ST313
Primary Voltage: 230 V
Secondary Voltage 1: 12 V
Secondary Voltage 2: 24 V
Secondary Current 1: 1.33 A
Secondary Current 2: 0.67 A
Max. Output Power: 16 W
Max. Output Current: 1.33 A
Max. Loss Power: 16 W
Type of Transformer: Safety Transformer
Surface Mounting: yes
Flush Mounting: no
Suitable for Rail Installation: yes
Length: 85 mm
Width: 70 mm
Height: 58 mm
Width in Division Units: 4
Short Circuit Proof: yes
Temperature Protection: yes
With On/Off Switch: no

Hager Safety Transformer ST313: additional details
Safety transformer 230V / 12V and 24V 16VA 4PLE. Safety transformer with separate primary and secondary windings. Protection against short circuit or overload is provided by an integrated thermal switch on the primary side.
EAN: 3250615703132.
