Hager SBN163. Rated current: 63 A. International protection rating (IP code): IP20. Width: 17.5 mm

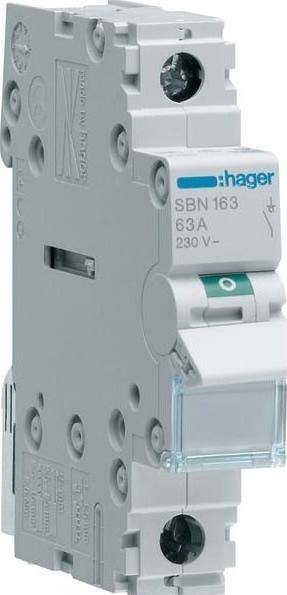

Hager Disconnect Switch SBN163

Manufacturer: Hager
Description: Disconnect Switch 1P 63A
Type: SBN163
Switching Function: Disconnect Switch
Number of Contacts as Normally Closed: 1
Number of Poles: 1
Rated Current: 63 A
Rated Voltage: 230 V
Minimum Rated Voltage: 230 V
Rated Short-Circuit Breaking Capacity: 1.332 kA
Short-Circuit Strength (Icw): 0.94 kA
Type of Voltage: AC
With Signal Lamp: No
Maximum Lamp Power: 0 W
Width in Division Units: 1
Installation Depth: 68 mm
Protection Class (IP): IP20
Forced Disconnection (according to DIN VDE 0113): No

Hager Disconnect Switch SBN163: Additional Details
Disconnect switch 63A 1 Normally Closed 230V AC 1PLE. Disconnect switch according to DIN EN 60669-1 (VDE 0632-1), DIN EN 60669-2-4 (VDE 0632-2-4), and DIN EN IEC 60947-3 (VDE 0660-107) with VDE mark, labeling option directly on the device, and suitable for retrofitting additional devices.
EAN: 3250615510204.
