Quantity discount

Hager MCS110. Rated current: 10 A. Type: C-type, Module quantity (max): 1 module(s). Width: 17.5 mm

Save CHF1.20
Ratings
BrandMore from Hager
Delivered between Wed, 11.6. and Sat, 21.6.
More than 10 items in stock at supplier

Product details

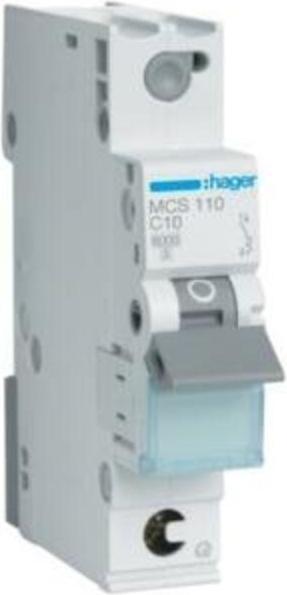

Hager Circuit Breaker MCS110

Manufacturer: Hager
Description: Circuit breaker 1p. C-10A 6kA 1M QC
Type: MCS110
Installation depth: 70 mm
Tripping characteristic: C
Number of poles (total): 1
Number of protected poles: 1
Rated current: 10 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Rated short-circuit capacity Icn according to EN 60898 at 230 V: 6 kA
Type of voltage: AC
Rated short-circuit capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Frequency: 50..60 Hz
Energy limitation class: 3
Flush-mounted installation: yes
Switching neutral conductor: no
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: no
Width in division units: 1
Protection class (IP): IP20
Ambient temperature during operation: -25..70 °C
Connectable conductor cross-section multi-stranded: 1..25 mm²
Connectable conductor cross-section single-stranded: 1..35 mm²
Explosion-proof: no

Hager Circuit Breaker MCS110: further details
Single-pole circuit breaker 6kA C-characteristic 10A Quick Connect 1 module. Circuit breaker with QuickConnect terminal according to DIN EN 60898-1, outgoing up to 16A and incoming for the distribution up to 63A, with delayed thermal tripping for overload protection and electromagnetic tripping for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
17.50 mm
mounting style
Flush-mounted
number of poles
1
Item number
20219593

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MCS110
Release date
23.3.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
1
Tripping characteristic
C
Rated current
10 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
12 Piece

Product dimensions

Length
70 mm
Width
17.50 mm
Height
83.40 mm

Package dimensions

Length
8.90 cm
Width
7.20 cm
Height
2.20 cm
Weight
82 g
