Hager Load shedding relay

1Ratings
BrandMore from Hager
Delivered between Thu, 16.4. and Thu, 23.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

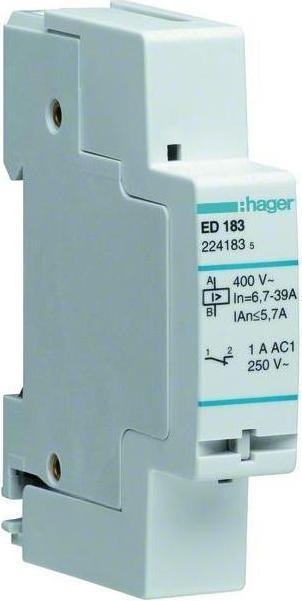

Hager load shedding relay ED183

Manufacturer: Hager
Designation: Load shedding relay 9-39A
Type: ED183
Rated voltage: 230 V
Rated current: 6.7 to 39 A
Tripping current: 3.1 to 5.7 A
Max. drop delay: 20 ms
Max. continuous current: 39 A
Number of contacts as normally open: 1
Rated current (control contacts): 1 A
Max. switching voltage (control contacts): 230 V
Max. switching power (control contacts): 250 VA
Electrical lifespan (control contacts): 1,000,000 switching cycles
Mechanical lifespan (control contacts): 10,000,000 switching cycles
Max. electrical switching frequency: 1800 c/h
Voltage type: AC
Mounting type: DIN rail
Width in division units: 1
Installation depth: 60 mm
Protection class (IP): IP40

Hager load shedding relay ED183: Additional details
Load shedding relay with a rated current range of 6.7 to 39 A. This load shedding relay protects against overloads in the power supply. It is connected in series with the primary load, while secondary loads are switched off via a normally open contact.

Key specifications

Relay type
Load shedding relay
input voltage
230 V
Output voltage
230 V
Electric current output
1 A
Output current type
AC

General information

Item number
17840008
Manufacturer
Hager
Category
Relays
Manufacturer no.
ED183
Release date
13.12.2021

Relay properties

Relay type
Load shedding relay
input voltage
230 V
Output voltage
230 V
Electric current output
1 A
Output current type
AC
Switching function
Opener
Number of openers
1x
Number of closers
1x
Number of switching cycles
10000000x
Max. Switching capacity
0.25 kW

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
10.33 kg
Climate contribution
CHF 0.25

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Width
17.80 mm
Height
83 mm
Weight
100 g

Package dimensions

Length
10 cm
Width
9 cm
Height
3 cm
Weight
90 g
