Hager Installation relay 16A 1S+1Ö 24V ERD218

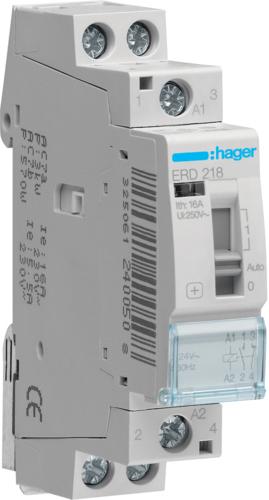

Hager Installation Relay ERD218

Manufacturer: Hager
Designation: Installation relay 16A 1S+1Ö 24V
Type: ERD218
Rated operating voltage: 230 V
Rated operating current: 16 A
Usage category according to EN IEC 60947-4-1: AC-7a/AC-7b
Rated control voltage: 24 V
Type of operating voltage: AC
Type of control voltage: AC
Number of contacts as normally closed: 1
Number of contacts as normally open: 1
Max. incandescent lamp load: 1100 W
Max. fluorescent lamp load: 570 VA
Max. fluorescent lamp load (Duo circuit): 1200 VA
Max. fluorescent lamp load (parallel compensated): 490 VA
Manual control slider: yes
Width in modular units: 1
Installation depth: 60 mm
Additional devices possible: yes
With day/night function: no
Buzz-free: no
Protection class (IP): IP2X

Hager Installation Relay ERD218: further details
Installation relay 16A 1S + 1Ö 24V. Installation relay according to DIN EN 61095 (DIN VDE 0637-3) for impulse control of circuits up to a maximum of 16 A. With contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. Note: When installing multiple devices directly, a spacer (1/2 PLE) must be installed next to every second device.
EAN: 3250612400508.
