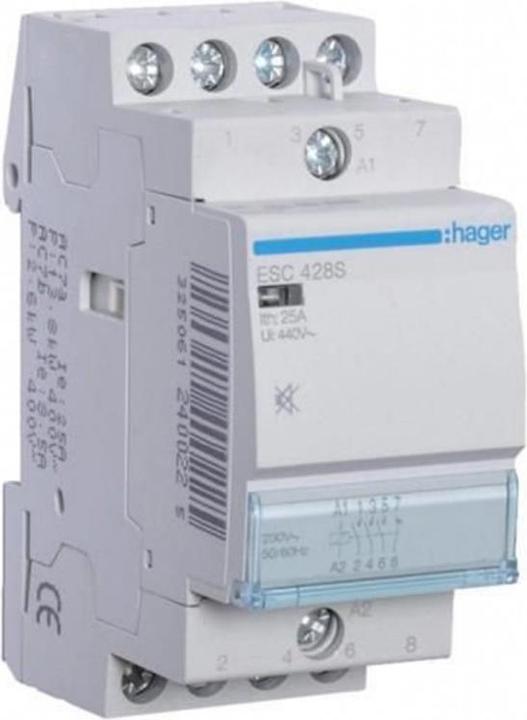

Hager Installation contactor 25A 3S+1Ö 230V

Hager Contactor ESC428S
Manufacturer: Hager
Designation: Noise-free Contactor 25A 3NO+1NC
Type: ESC428S
Rated operational voltage: 400 V
Rated operational current: 25 A
Utilization category according to EN IEC 60947-4-1: AC-7a/AC-7b
Rated control voltage: 230 V
Type of operational voltage: AC
Type of control voltage: AC
Number of contacts as normally open: 3
Number of contacts as normally closed: 1
Max. incandescent lamp load: 1900 W
Max. fluorescent lamp load: 950 VA
Max. fluorescent lamp load (Duo circuit): 1990 VA
Max. fluorescent lamp load (parallel compensated): 810 VA
Manual control lever: no
Width in modular units: 2
Installation depth: 60 mm
Additional devices possible: yes
With day/night function: no
Noise-free: yes
Protection class (IP): IP2X

Hager Contactor ESC428S: additional details
Noise-free installation contactor 25A with 3 normally open and 1 normally closed contacts at 230V. Noise-free contactor according to DIN EN 61095 (VDE 0637-3) with contact position indication through a display window, integrated labeling field, and suitable for retrofitting additional devices. DC magnetic system with protection circuit against overvoltage and to limit disturbance voltage peaks, ensuring noise-free continuous operation and minimal switching noise. Note: When installing multiple devices directly, a spacer (1/2 PLE) must be installed next to every second device.
