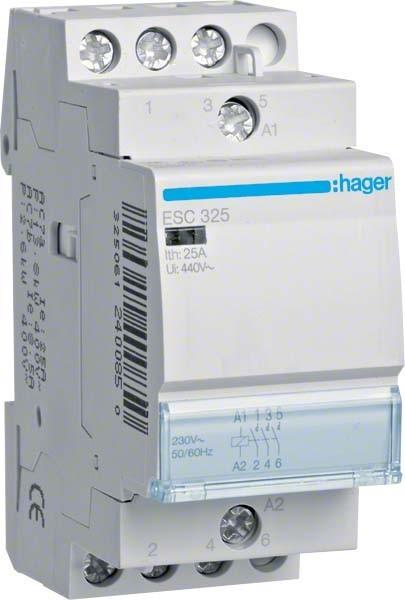

Hager ESC325. Contact current carrying capacity: 25 A, cable cross-section: 1/6 mm², operating

Ratings
BrandMore from Hager
Delivered between Thu, 18.9. and Tue, 23.9.
Only 2 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Hager Contactor ESC325 Manufacturer: Hager Designation: Contactor 25A 3S 230V Type: ESC325 Rated operating voltage: 400 V Rated operating current: 25 A Utilization category: 7 Rated operating voltage: 230 V Voltage type of operating voltage: AC Voltage type of operating voltage: AC Number of contacts as normally open contacts: 3 Max. Incandescent lamp load: 1900 W Max. Fluorescent lamp load: 950 VA Max. Fluorescent lamp load (duo circuit): 1990 VA Max. fluorescent lamp load (parallel compensated): 950 VA Fluorescent lamp load (parallel compensated): 810 VA Slider for manual switching: no Width in pitch units: 2 Installation depth: 60 mm Additional devices possible: yes Protection class (IP): IP2XHager contactor ESC325: more detailsInstallation contactor 25A 3 NO contacts 230V. Contactor in compact design according to DIN EN 61095 (VDE 0637-3) and contact protection according to DIN VDE 0106-100. Contact position indication by display window, integrated labeling field and suitable for retrofitting of additional equipment. Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device. , EAN: 3250612400850

Key specifications

input voltage
230 V
Scope of delivery
1
Output voltage
230 V
Output current type
AC
Electric current output
25 A
Relay type
Switching relay
Item number
17823275

General information

Manufacturer
Hager
Category
Relays
Manufacturer no.
ESC325
Release date
10.12.2021

Relay properties

Relay type
Switching relay
input voltage
230 V
Output voltage
230 V
Electric current output
25 A
Output current type
AC
Switching function
Normally open
Number of closers
3 x
Number of switching cycles
30000 x
Max. Switching capacity
1.90 kW
Manufacturer Type
Esc325

Smart home features

Smart Home
Not compatible
Radio frequency
50 Hz

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1

Product dimensions

Length
100 mm
Width
80 mm
Height
230 mm

Package dimensions

Length
10.10 cm
Width
8.10 cm
Height
4.60 cm
Weight
201 g
