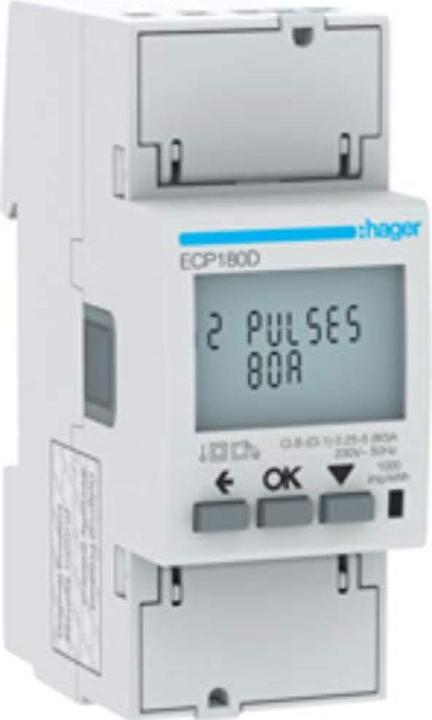

Hager ECP180D

Single-phase energy meter, direct 80A, 2M, S0, MID. Energy meter for 4-quadrant measurement with the following accuracy classes: Active energy Class B according to DIN EN 50470-3, Active power Class 1 according to IEC 62053-21, Active power Class 1 according to IEC 61557-12, and Reactive power Class 2 according to IEC 62053-23. The bidirectional meter is factory-certified MID. A sealing kit is included in the delivery. Suitable for measuring energy consumption and energy delivery in all network systems. Two tariff measurements can be controlled via 230 V AC and output via 2 configurable pulse outputs. Digital display with backlighting for showing consumed and delivered active energy (kWh). Additionally, real-time measurements for active power (kW), reactive power (kvar), apparent power (kVA), voltage (V), current (A), power factor, and frequency (Hz) are displayed with a resolution of up to 9 digits including decimal points. The pulse output provides measurements for consumed and delivered active (kWh) and reactive energy (kvarh), as well as the consumed active energy (kWh) for Tariff 1 and Tariff 2. All measurement values and energy values for Tariff 1 and Tariff 2 can also be output via an IR interface. Wiring errors and connection errors are displayed, and the measurement data is periodically stored.
